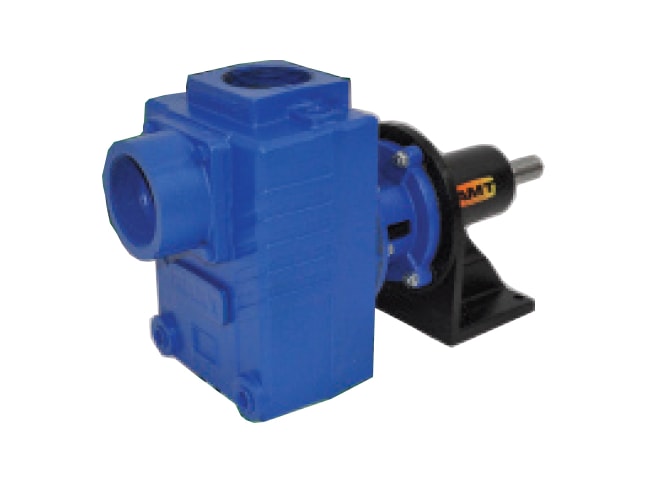

AMT Self-Priming Solids Handling Pedestal Drive Pump

Name: AMT Self-Priming Solids Handling Pedestal Drive Pump
Price: 527.0 USD
Availability: BackOrder

Trash pumps series with a maximum working pressure of 75 PSI and self-priming abilities to 20 feet.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:00 am to 5:30 pm .

Starting Price: $527.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Product Specs

Highlights...

By AMT
Call for Availability

Features

Cast aluminum, cast iron or thermoplastic construction available
- Buna-N or mechanical seal options available
2in to 4in NPT suction and discharge ports
75 PSI maximum working pressure
Self-priming to 20ft
Shaft diameter
- 2in models: 3/4in shaft
- 3in and 4in models: 1 1/8in shaft
Sized from 3 HP to 15HP driver at 3600 RPM, dependent on model selection

The AMT self-priming series of solids handling pedestal drive pumps are designed for direct or belt drive. Specific units are available in cast aluminum, cast iron, or thermoplastic construction material. The units feature 3/8in to 2in solids handling construction and are fitting with a cast iron bearing housing. The bearing housing contains two or three precision sealed ball bearings depending on the selected model.

Additionally, pumps are designed to handle liquids with solids content or dissolved solids and debris. They feature an easy cleanout design by removing the casing bolts, which allows for the removal of debris without disconnecting hoses. The 3in and 4in trash pump models are equipped with cleanout covers that have quick release handles for the removal of debris. All units are self-priming to 20 feet. Please see the datasheet for more information regarding model differences between dewatering and trash pumps.
