AMT 3P9X Series Portable High Pressure Pump

Cast iron portable pump with a maximum flow of 185 GPM and maximum head of 89 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:00 am to 5:30 pm .
Starting Price: $1,653.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...
  • By AMT
  • Call for Availability

Features

  • Cast aluminum construction and EPDM/EPR mechanical seals
  • 3in cast iron suction/discharge NPT port sizes
  • 185 GPM maximum flow
  • 89 PSI maximum head
  • Maximum lift to 26ft
  • Engine options: Honda, LCT Storm Force gasoline, or Hatz diesel
  • Discharge port rotates in 90° increments
  • One tool serviceability

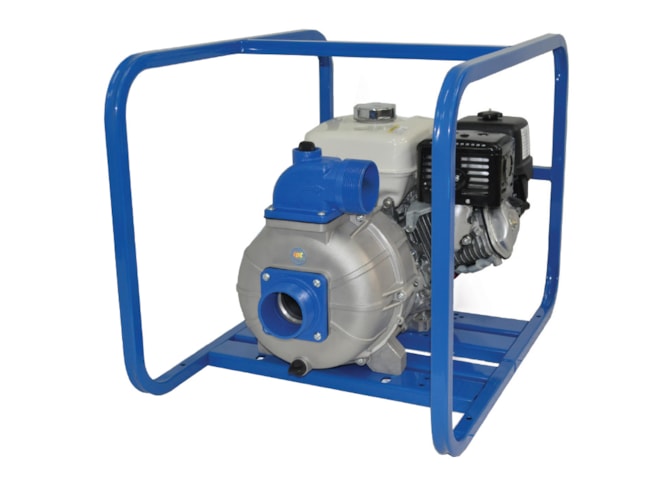

The AMT 3P9X Series is a line of engine driven, high pressure pumps. They are portable pumps made with cast aluminum construction and cast iron volute/male NPT ports. The pumps are suitable for application including fire protection, agricultural spraying, and irrigation. These pumps are available with multiple engine options: Honda, LCT Storm Force gasoline, or Hatz diesel. They feature a closed cast aluminum impeller. All models come equipped with EPDM/EPR elastomers and seals.
