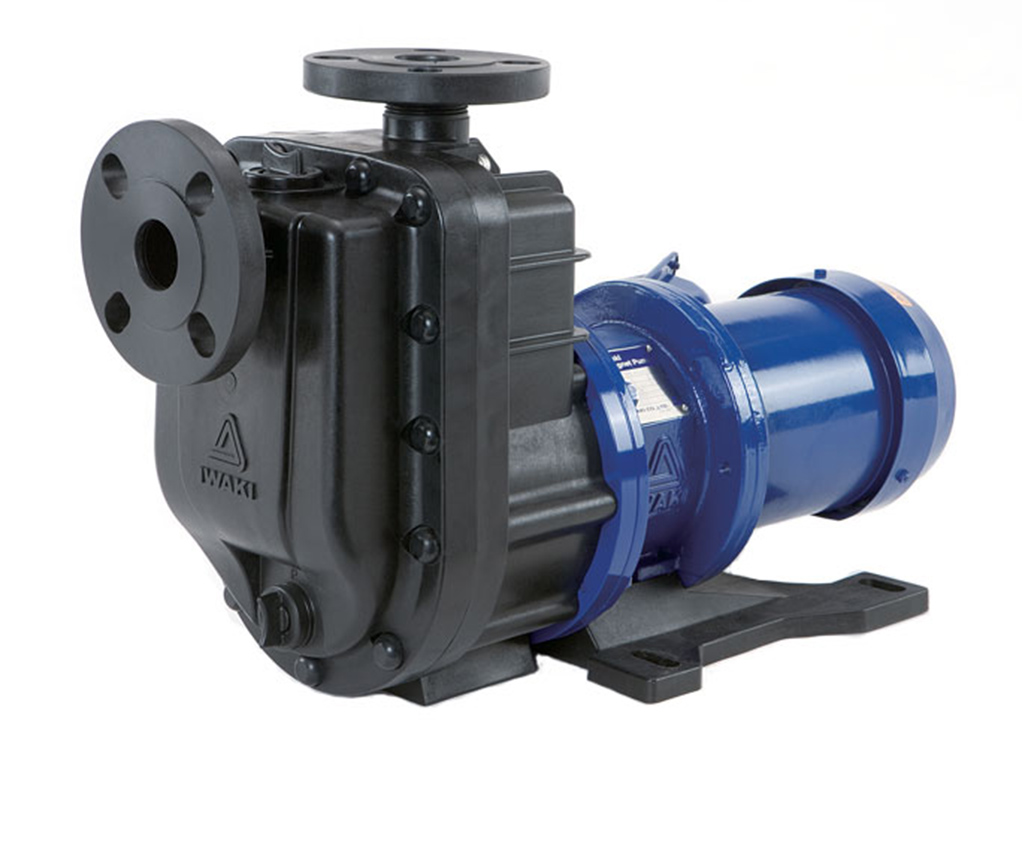

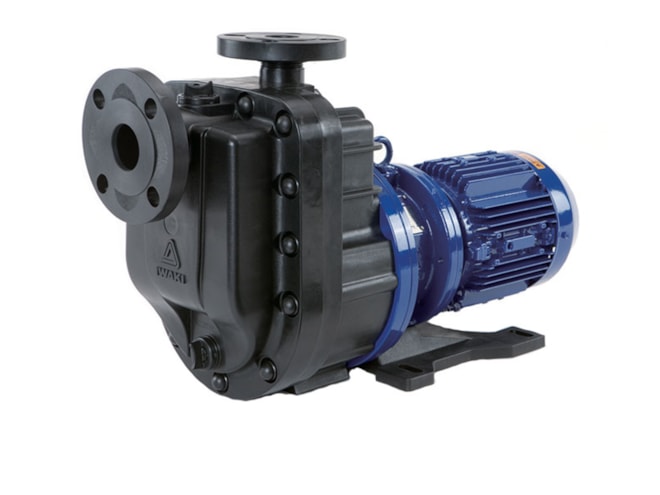

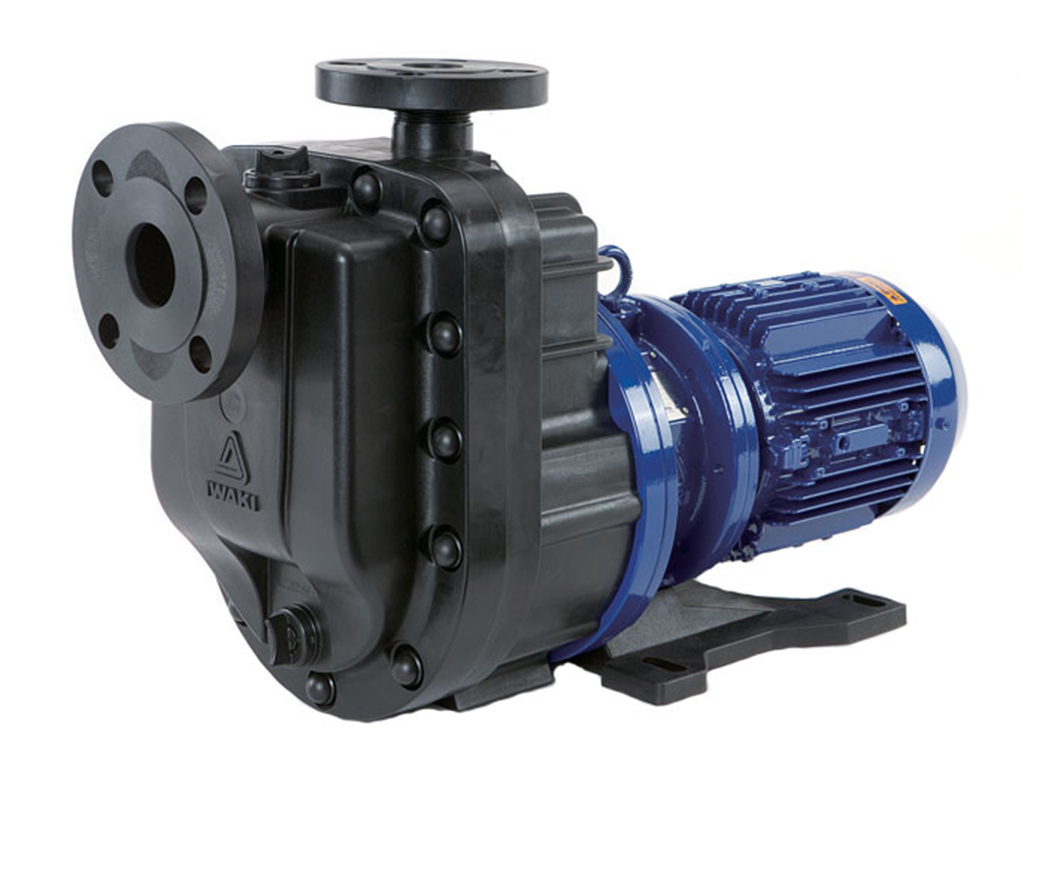

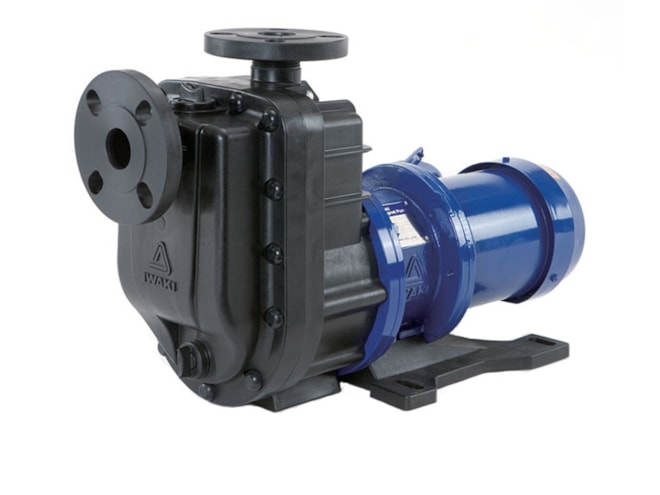

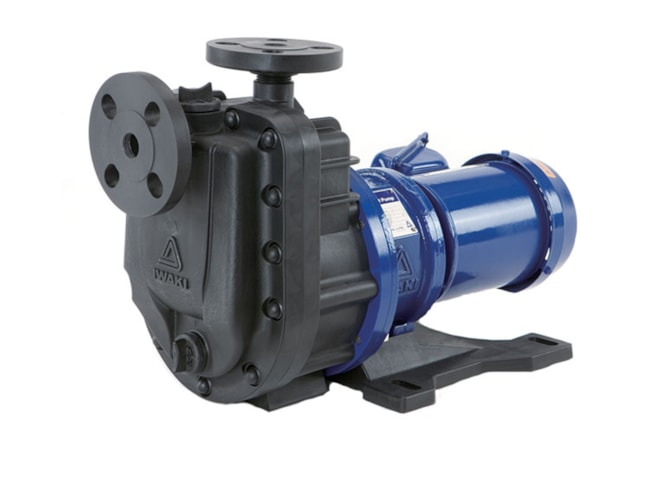

Iwaki SMX Series Self-Priming Magnetic Drive Pump

Magnetic drive pump series with a maximum capacity of 25 to 132 GPM and maximum head of 35 to 119ft, depending on model selection.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:00 am to 5:30 pm .
Starting Price: $1,445.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...
  • By Iwaki
  • Usually ships in 3 to 4 weeks

Features

  • Glass fiber reinforced polypropylene construction
  • Priming capability: 13ft in 90 seconds
  • Removable wet end assembly

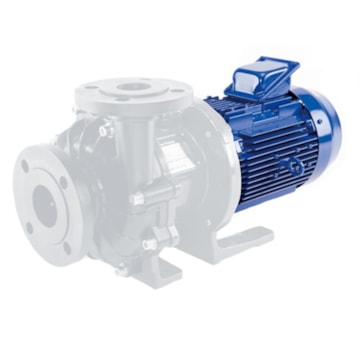

  • Standard NEMA-C face motor
    • 3500 RPM
    • 0.5 to 5.0 HP
  • Self-radiating structure for frictional heat management
  • Maximum capacity: between 25 to 132 GPM
  • Maximum head: 35 to 119ft

The Iwaki SMX series of self-priming pumps are centrifugal pumps designed to prime themselves automatically without external assistance. They are ideal in applications where fluid levels may vary or if they are forced to operate with a dry suction line. These are magnetically driven, non-metallic pumps with no mechanical seal. They feature a self-radiating bearing structure and non-contact dry-run capability, allowing to withstand abnormal operating conditions across industries.

The bearing is available in multiple material options: carbon, PTFE with filler, and SiC. The motor is a standard NEMA-C face motor, with 3500 RPM and power options between 0.5 to 5.0 HP - dependent on model selection. Additionally, the pumps come with a removable wet end assembly and are constructed with glass fiber reinforced polypropylene. The pumps contain a priming capability of 13ft in 90 seconds.
