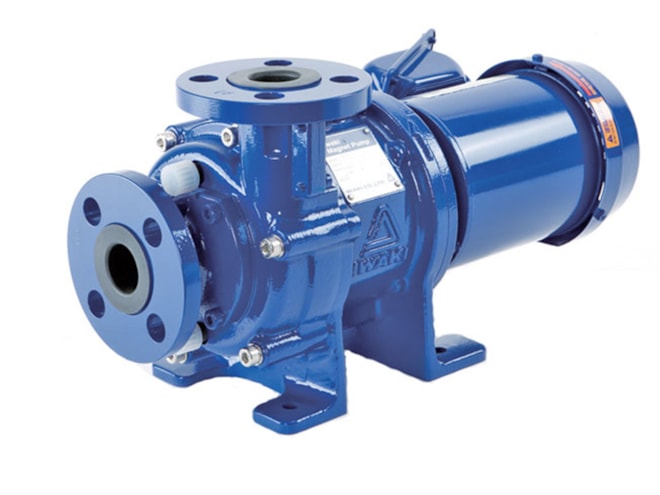

Iwaki MXM Series Chemical Process Magnetic Drive Pump

Magnetic drive pump series with a maximum head of up to 142ft and maximum capacity of 160 GPM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Starting Price: $2,222.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...
  • By Iwaki
  • Usually ships in 3 to 4 weeks

Features

  • Back pull-out design
  • Dry run capability
  • Contains ANSI 150# flanged connections
  • Maximum capacity: 55 to 160 GPM
  • Maximum head: 38 to 142ft
  • Liquid temperature range: 14 to 221°F (-10 to 105°C)
  • Maximum operating pressure: 101.5 PSI
  • Motor output: 05. to 5.0 HP options available
  • Splined/pinned impeller design

The Iwaki MXM series is a pump series designed for a range of chemical process applications. They feature separate impellers and inner magnets to aid in flexibility and application. They are ideal for chemical transfer on chemistries such as bleach and sulfuric acid. These pumps are able to withstand process-upset conditions, due to its dry run capability and the self-radiating bearing lubrication circuit.

Additionally, the pump series is designed with heat dispersion holes located behind the impeller to facilitate the removal of frictional bearing heat. This also aids in bearing lubrication and cooling circuit flow under dry run or poor suction conditions. The close-coupled back pull-put design allows a user to inspect the pump while leaving the line pressurized.
