Iwaki WMD/MD Series Centrifugal Pump

Non-metallic centrifugal pumps with a maximum capacity of up to 36 GPM and maximum pressure of 42.7 PSI.

Iwaki WMD/MD Series Centrifugal Pump (MD-15)

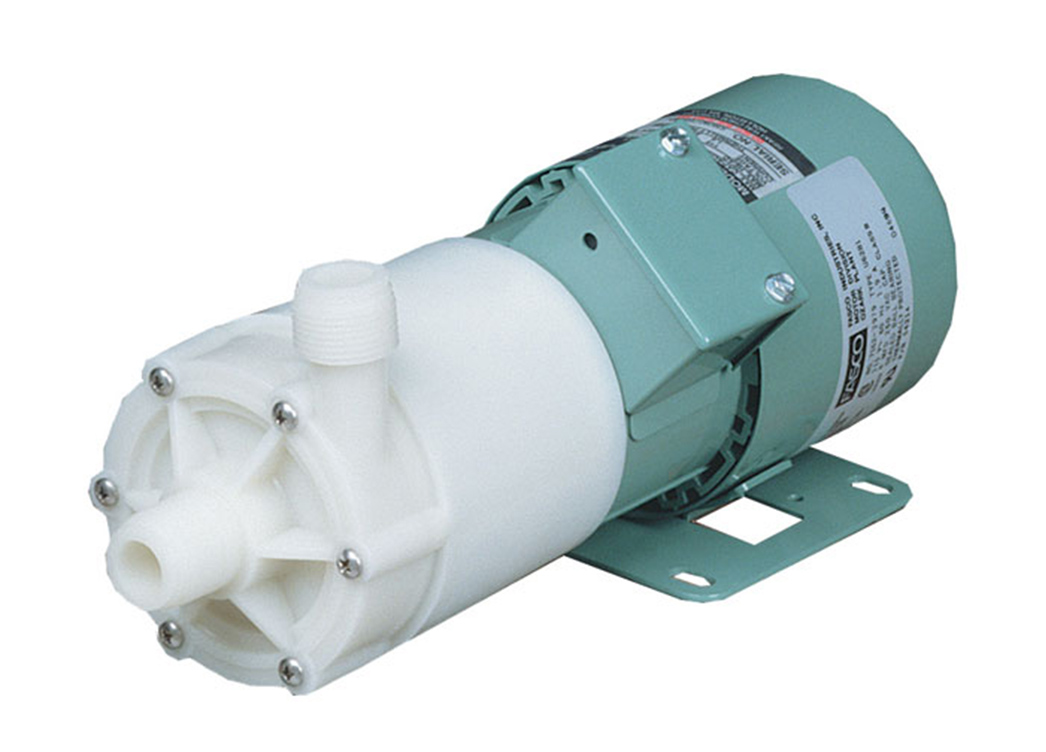

Iwaki WMD/MD Series Centrifugal Pump (WMD-40)

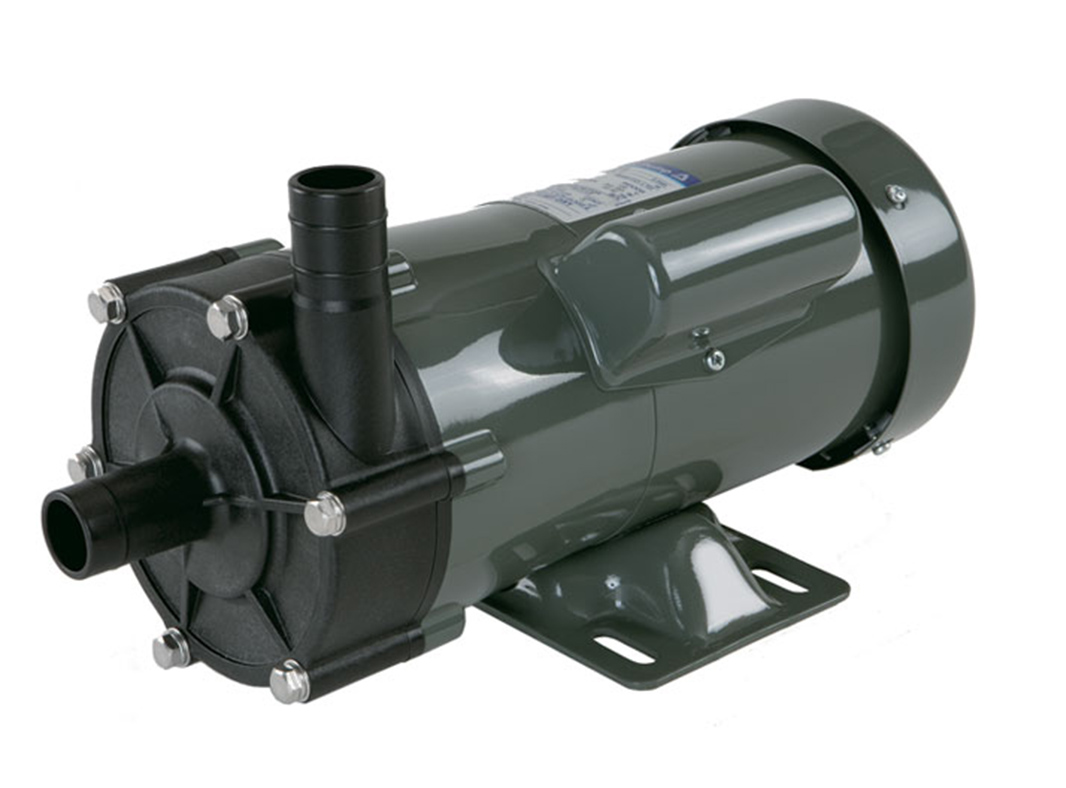

Iwaki WMD/MD Series Centrifugal Pump (MD-100)
Iwaki WMD/MD Series Centrifugal Pump (WMD-100)

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:00 am to 5:30 pm .

Starting Price: $278.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Iwaki
Usually ships in 3 to 4 weeks

Features

Maximum capacity: up to 36 GPM
Polypropylene, silicon carbide, and ETFE bearing materials available
Maximum pressure: from 2.8 to 42.7 PSI, depending on selection
Hose connections available up to 1in
NPT connections available up to 1in
Liquid temperature range: 32 to 176°F (0 to 80°C)
Ambient temperature range: 32 to 104°F (0 to 40°C)
US motor designs available
Impeller options: standard, high head, and high flow

The Iwaki MD/WMD Series of pumps are small, magnetically coupled, centrifugal pumps with power from 1/250 to 1/3 HP. They are compact and ideal for use in laser, chiller, and blood analyzer applications. This pump series is not self-priming; operating the pump dry (without liquid) may cause damage. There is an internal cooling circuit feature which helps reduce the bearing temperature in this pump series.

With a variety of sizes and voltage options, this small centrifugal pump series is ideal for a range of process applications. These pumps are non-metallic due to the use of magnet torque to transmit energy. Because of this, it is important that any liquids in the process application do not contain iron, nickel, or other magnetic materials. This series comes with US motor designs available for certain selections, please see the manual and datasheets for more details.
