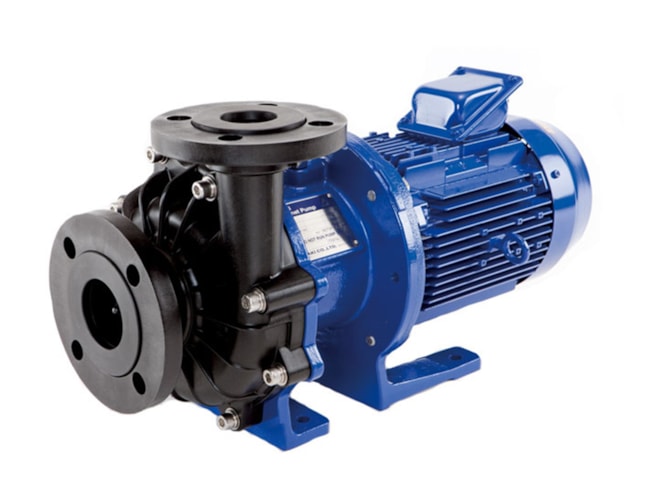

Iwaki MX Series Magnetic Drive Pump

Magnetic drive pumps with a maximum capacity of 225 GPM and maximum head of 128ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Starting Price: $682.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-250) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-251) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-400) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-401) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-402) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-402H) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-403) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX 403H) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-505) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-F250) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-F251) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-F400) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-F401) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-F402) Iwaki MX Series Magnetic Drive Pump Datasheet (Model MX-F403)
Highlights...
  • By Iwaki
  • Usually ships in 3 to 4 weeks

Features

  • Maximum capacity: 225 GPM
  • Maximum head: 128ft
  • GFRPP or CFRETFE casing options
  • Available in multiple bearings materials
    • Carbon
    • PTFE
    • Alumina ceramic
    • Silicon carbon
  • Power options: 0.5 to 5.0 HP
  • Flanged and NPT options available

The Iwaki MX series of magnetic drive pumps is engineered to meet severe operating conditions, making it suitable for use in applications such as chemical transfer on chemistries such as bleach and sulfuric acid. They contain a self-radiating structure which can allow for brief periods of dry running when fitted to a carbon bearing. This structure aids in withstanding cavitation and running against a closed discharge valve.

This series also utilizes a split volute casing as a resin magnet pump. This casing forms a vortex chamber which can limit the liquid flow from the impeller and return it to the pump. The pump can be installed for both indoor or outdoor use, but should always be mounted horizontally. Pumps are sized from 1in by 1in to 2.5in by 2in.
