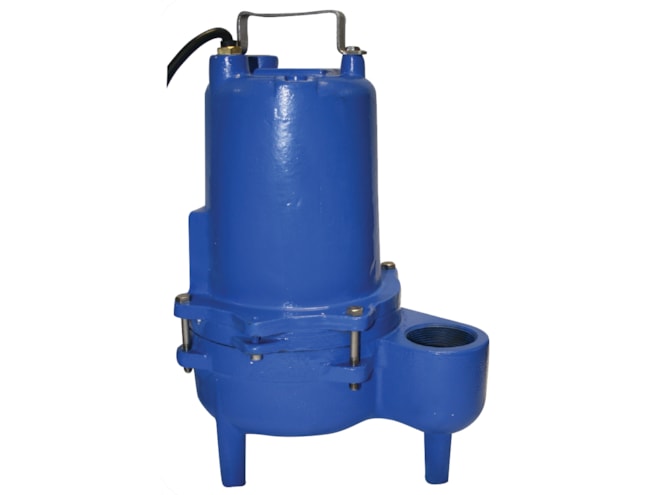

Power-Flo Technologies PFS Series Sewage Pump

1,750 RPM, choice of manual operation, wide angle float, or vertical float.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Starting Price: $985.67
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Power-Flo Technologies PFS Series Sewage Pump datasheet - Manual operation Power-Flo Technologies PFS Series Sewage Pump datasheet - Wide angle float Power-Flo Technologies PFS Series Sewage Pump datasheet - Vertical float
Highlights...

Features

  • 2in FNPT vertical discharge
  • 2in spherical solids
  • 116 GPM max. flow
  • 25ft shutoff
  • 4/10 HP
  • Voltage options:
    • 115V
    • 230V (manual operation only)
  • Continuous liquid temperature:
    • 77°F (115V)
    • 104°F (230V)
  • Cast iron, class 30 motor housing, volute, seal plate, and impeller
  • Level control (not available with manual operation):
    • Wide angle or vertical
    • Mechanical (and PVC for vertical)
    • Normally-open (N/O)
    • 16/2 SJOW cord with piggy-back plug
  • Seal:
    • Inboard, single mechanical
    • 5/8in
    • Oil-filled chamber
    • Carbon/ceramic/Buna-N with secondary exclusion seal

The Power-Flo Technologies PFS Series Sewage Pump is submersible and designed for typical raw sewage applications. The pump is composed of a dynamically balanced, 2-vane impeller that is open with pump out vanes on the back side, and stainless steel shaft and hardware. The motor is composed of Class B insulation, is oil-filled, and uses squirrel cage induction. The motor is single phase with a permanent split capacitor (PSC), and includes overload protection. The pump is available in manual or automatic operation, with wide angle or vertical automatic options.

Manufacturer Stock

Part Number Price Available
PFS411-20
Show Configuration
$985.67 3 in stock
PFS421-20
Show Configuration
$949.94 2 in stock
PFS411A-20
Show Configuration
$990.07 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
