AMT Interchangeable Series Immersion and Suction Coolant/Oil Pump

Fully interchangeable with units furnished on most imported machine tools.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $199.24
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Cast iron construction
  • Stainless steel, semi-open impeller
  • Carbon steel shaft
  • 180°F maximum temperature
  • 56 GPM maximum flow (water)
  • 60ft maximum head (water)
  • Single or three phase, two pole 3450 RPM motor
  • 1/8 to 1 HP options available

The AMT Interchangeable Series are replacement coolant/oil pumps equivalent to units supplied with both domestic and foreign made machine tools. These pumps are designed for the circulation and spraying of coolants and cutting oils. Pumps are available with a stainless steel impeller for added corrosion/erosion resistance and durability. 1/8 and 1/4 HP models are available in 115/230 VAC, 60 Hz single phase and 230/460 VAC, 60 Hz three phase. Motors are Totally Enclosed with sealed bearings and operate at 3450 RPM.

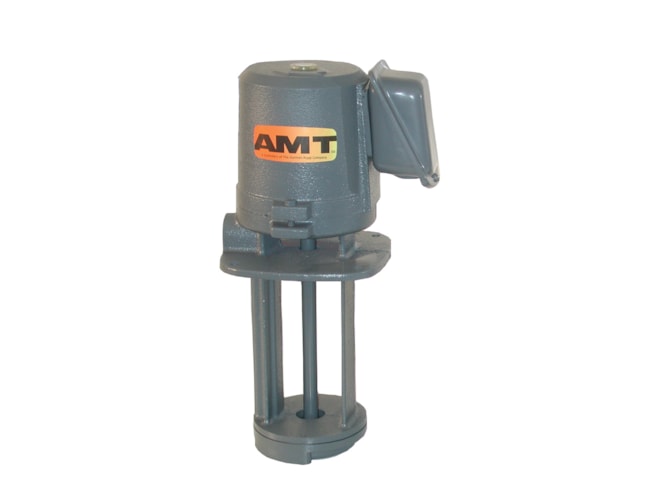

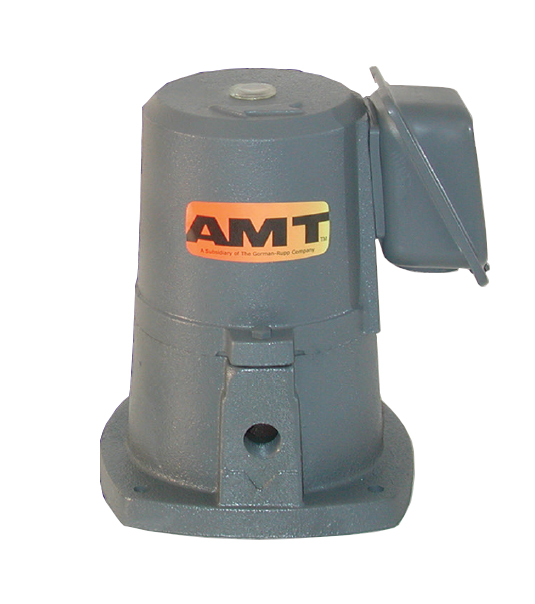

Pumps feature semi-open impellers that are designed for handling solids and fine contaminants. Immersion type pumps contain a sealless design for pumping abrasives. It can pump liquids down to 2in and is ideally suited for pumping fine contaminants. The suction type pumps are designed with a carbon/ceramic shaft seal. They are self-priming up to 2ft. The suction pumps must be mounted above the liquid.

This product can be used in the following applications:

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
5340-95
Show Configuration
$225.08 1 in stock
5341-95
Show Configuration
$232.56 1 in stock
5350-95
Show Configuration
$409.36 1 in stock
5351-95
Show Configuration
$409.36 1 in stock
5380-95
Show Configuration
$199.24 1 in stock
5381-95
Show Configuration
$194.48 1 in stock
5390-95
Show Configuration
$404.60 1 in stock
5391-95
Show Configuration
$393.04 1 in stock
5411-95
Show Configuration
$704.48 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
