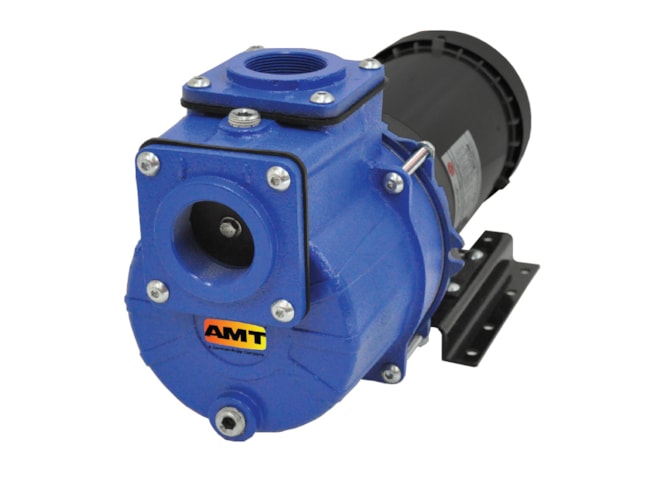

AMT Series Cast Iron Self-Priming Chemical Pump

Cast iron chemical pumps with port sizes between 1in to 2in NPT and a maximum flow of 130 GPM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $611.32
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Cast iron construction with EPDM/EPR seals
  • 1in to 2in NPT port options
  • 180°F maximum temperature
  • 130 GPM maximum flow
  • 100ft maximum head at 43 PSI
  • Self-priming up to 20ft with built in check valve
  • 0.5 tp 3.0 HP 56J dual cycle single or three phase TEFC motor
  • Self-cleaning, clog-resistant impeller
  • Stainless steel shaft within motors

The AMT Series of cast iron, self-priming centrifugal chemical pumps are fitted with port sizes ranging from 1in to 2in NPT. The pumps are designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage, and chemical processing. Pumps are designed to handle liquids with solids content or dissolved solids and debris. The build in check valves allow for self-priming up to 20 feet.

All models are fitted with a self-cleaning, clog-resistant impeller capable of handling up to 3/8in diameter of semi solids and EPDM/EPR seals for liquid chemical transfer with specific gravities up to 1.3. The dual volute design helps reduce radial load on the motor. These pumps contain a 0.5 to 3.0 HP 56J dual cycle single or three phase TEFC motor. The motors also feature a 303 stainless steel shaft.

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
1SP05C-1P
Show Configuration
$611.32 1 in stock
2SP20C-3P
Show Configuration
$839.12 1 in stock
2SP30C-3P
Show Configuration
$900.32 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
