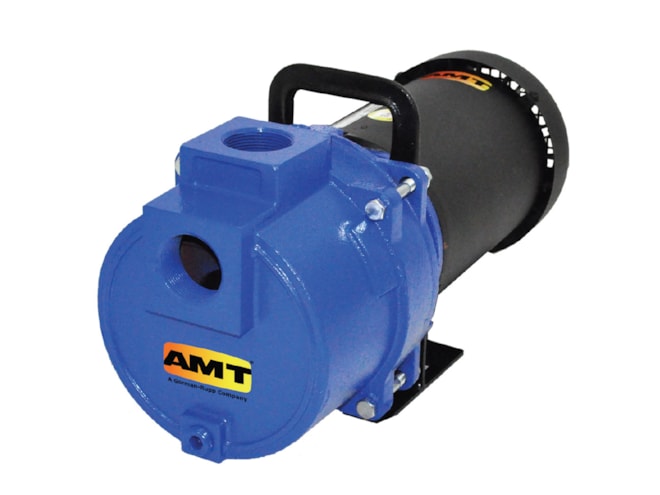

AMT Series Self-Priming Sprinkler Booster Pump

Cast iron sprinkler/booster pumps available in either one or two stage construction and self-primes to 20ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $557.60
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
AMT Series Self-Priming Sprinkler Booster Pump Manual (Single Stage) AMT Series Self-Priming Sprinkler Booster Pump Manual (Two Stage)
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Cast iron construction with Buna-N mechanical seal and O-ring
  • 1 1/2in or 2in NPT port sizes available
  • 180°F maximum temperature
  • 157 GPM maximum flow
  • 180ft maximum head
  • Self-priming to 20ft
  • Single or two stage construction
    • Single stage models feature removable dual volute design
  • Available with 0.75 and 7.5 HP single or three phase motor options

The AMT sprinkler/booster pump series features cast iron construction with Buna-N mechanical seal and O-ring, as well as cast stainless steel impellers for resistance against erosion caused by abrasive particles. All models self-prime to 20 feet. The single stage models feature a dual volute design to reduce the radial load on the motor and a built-in check valve to ensure fast priming after initial liquid is added to the pump.

The easy cleanout design includes replaceable dual volute/diffuser and casing O-ring for servicing. The two stage model provides additional pressure in fractional horsepower sizes for multi-sprinkler head applications. Pumps are available with power options from 0.75 to 7.5 HP, with ODP and TEFC enclosure options for selection.

This product can be used in the following applications:

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
3655-95
Show Configuration
$1,340.28 1 in stock
3656-95
Show Configuration
$1,459.28 1 in stock
3657-95
Show Configuration
$1,888.36 1 in stock
3792-95
Show Configuration
$605.88 1 in stock
3793-95
Show Configuration
$671.16 1 in stock
379F-95
Show Configuration
$638.52 1 in stock
379L-95
Show Configuration
$830.28 1 in stock
4782-95
Show Configuration
$1,087.32 1 in stock
4786-95
Show Configuration
$1,087.32 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
