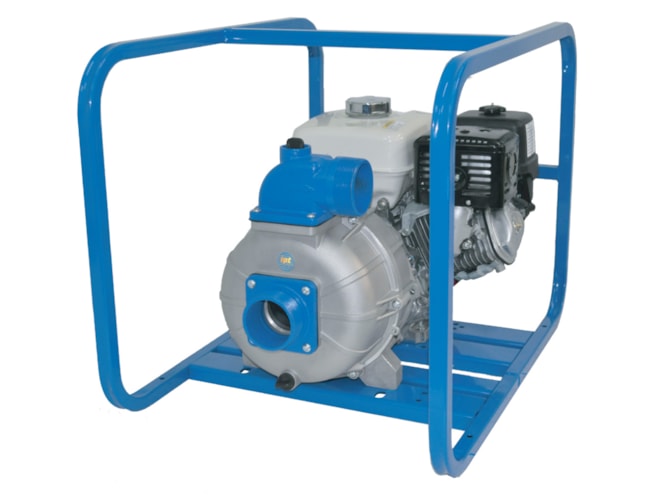

AMT IPT Series 3 to 4in Engine Driven Trash Pump

Trash pumps with 3in or 4in NPT ports, a maximum flow of 530 GPM, and maximum head of 112ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,136.28
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
AMT IPT Series 3 to 4in Engine Driven Trash Pump Manual (3in Model) AMT IPT Series 3 to 4in Engine Driven Trash Pump Manual (4in Model)
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Cast aluminum with internal cast iron wearparts
  • Silicon carbide/Viton mechanical seal
    • EPDM/EPR O-rings
  • 3in or 4in removable male NPT suction and discharge ports
  • Discharge rotates in 90° increments
  • Engine options: Honda, LCT Storm Force Gasoline, or Hatz Diesel
  • 2in maximum solids handling
  • 530 GPM maximum flow
  • 112ft maximum head
  • Self-priming to 26ft

The AMT IPT series of 3 to 4in port sized trash pumps are high volume, self-priming centrifugal pumps with cast aluminum construction. This series also has internal cast iron wearparts for durability, including a cast iron impeller and volute that resist abrasion and wear. Pumps are designed to handle liquids with solids content or dissolved solids and debris. All models include a built-in check valve, suction strainer, and heavy duty steel roll frame. Also includes cast iron flanges with NPT threads that rotate in 90° increments. Additionally, there are easy access fill plugs on the discharge ports.

This product can be used in the following applications:

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
3S9XHR
Show Configuration
$2,005.32 1 in stock
3S9XLR
Show Configuration
$1,136.28 1 in stock
4S13XHR
Show Configuration
$3,689.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
