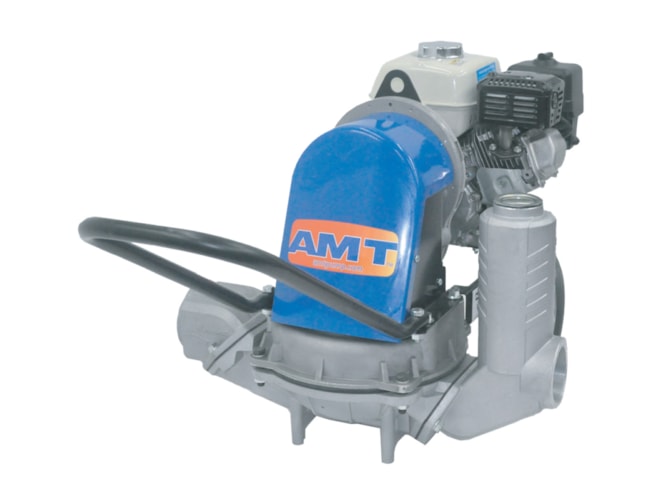

AMT 33 Series Self-Priming Diaphragm Pump

Aluminum constructed diaphragm pumps with a solids handling of 1 5/8in and self-primes to 25ft, with lift.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,816.96
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Sand cast aluminum construction
    • Thermoplastic Santoprene diaphragm
  • 2in or 3in NPT suction and discharge ports
  • Self-priming to 25ft lift
  • 1 5/8in maximum solids handling
  • Modular component design for maintenance and cleanout
  • Driver options: Gasoline or electric single and three phase motors
  • Delivers up to 90 GPM
  • 90° rotatable base on all models

The AMT 33 Series is a line of diaphragm pump that feature a two-stage, heavy duty forged gear driven transmission. Also known as mud or sludge pumps, they are designed to pump mud, slurry, sewage, and thick liquids that have the ability to flow. These pumps are available with gasoline or electric motor driver options. The built-in check valve allows for self-priming to 20ft after initial prime. The heavy duty forged gear driven transmission is designed to operate the pump at 40 strokes per minute for electric motors and 60 strokes per minute for engine driven. Each unit contains a 2in or 3in NPT steel suction strainer, two NPT nipples, and a wheel kit for portability.

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
337H-96
Show Configuration
$2,252.16 1 in stock
337L-96
Show Configuration
$1,984.92 1 in stock
338G-96
Show Configuration
$2,105.28 1 in stock
338L-96
Show Configuration
$1,816.96 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1 to 2 weeks". Click here to select options
