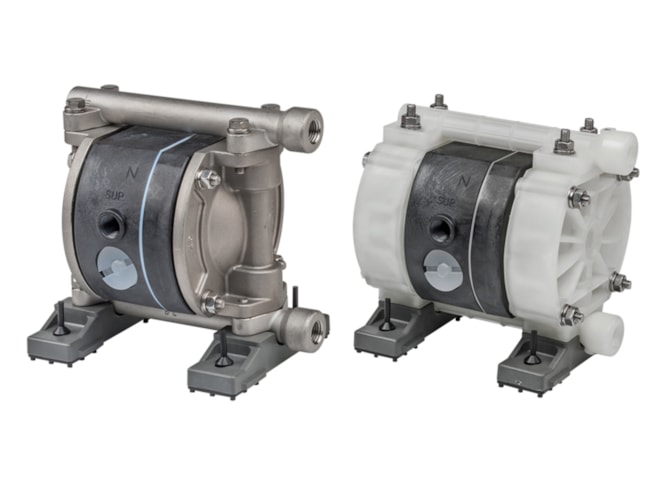

Iwaki Air TC-X050 Series 1/4in Air Motor Pump

Air motor pump series with a maximum flow of 3.0 GPM and air pressure range of 30 to 100 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $437.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • Maximum flow rate: 3.0 GPM
  • Maximum head: 230ft
  • Maximum air pressure: 100 PSI
  • Maximum air consumption: 8.83scfm
  • Supply air pressure range: 30 to 100 PSI
  • 1/4in NPT connections
  • CE, ATEX, FDA certified (dependent on model selection)
  • Looped C-spring valve

The Iwaki TC-X050 is an air motor pump series with a maximum flow of 3.0 GPM and a maximum head of 230ft. With NPT connection ports sized at 1/4in, these pumps are designed to be small and compact. This series is suitable for use with liquid transfer applications. The Looped-C air motor technology allows for a maximum air consumption rate of 8.83scfm and the pumps can operate in a supply air pressure range of 30 to 100 PSI. They are CE certified, with additional ATEX and FDA certifications dependent on model selection. They are available in the following materials: stainless steel, aluminum, glass fiber reinforced polypropylene, pure polypropylene, PVDF (Kynar), and acetal (POM).
