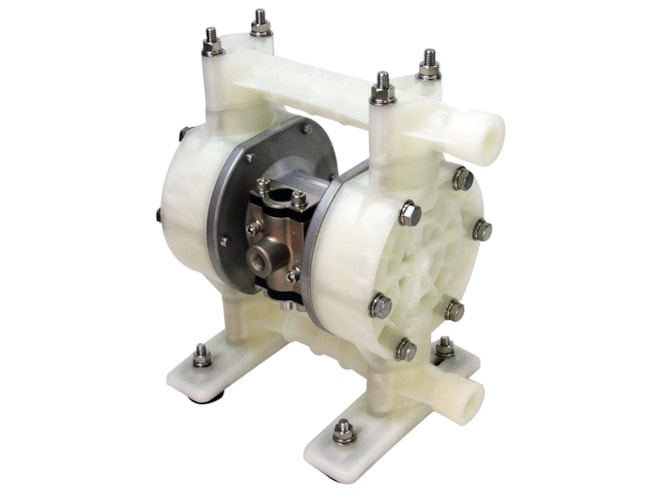

Iwaki Air TC-X150 Series 1/2in Dead Head Air Motor Pump

Air operated double diaphragm motor pumps with 1/2in NPT connections and a maximum flow of 7.14 GPM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $470.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • Materials available: glass fiber reinforced polypropylene (PPG) and acetal options
  • Legacy valve shuttle valve type
  • Flat valve type
  • CE certified
    • Acetal option ATEX certified
  • Maximum flow rate: 7.14 GPM
  • Maximum discharge head: 230ft
  • Maximum air consumption rate: 10.6scfm

The TC-X150 Series is a line of air operated double diaphragm pumps with 1/2in NPT connections. These pumps are designed to handle frequent start/stop, dead head, and high pressure applications. They are available in glass fiber reinforced polypropylene (PPG) and acetal, as well as CE certified. The acetal material option is ATEX certified. This pump line operates with a maximum flow rate of 7.14 GPM and a maximum discharge rate of 230ft. Additionally, the pumps are capable of a maximum air consumption rate of 10.6scfm.
