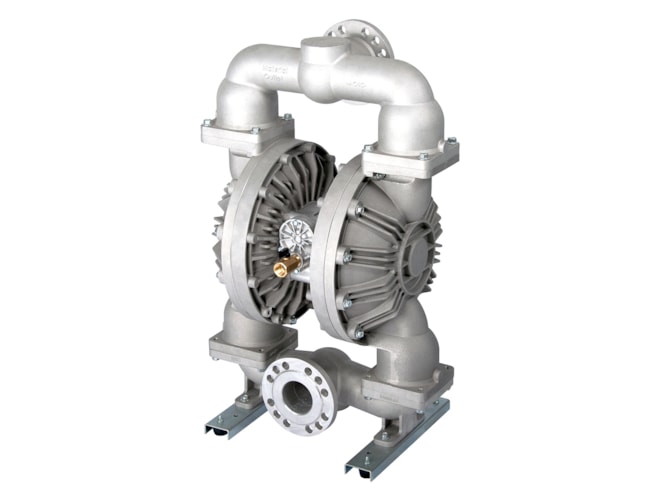

Iwaki Air TC-X801 Series 3in Heavy Duty Air Motor Pump

Heavy duty air motor pumps with a maximum flow of 251 GPM and maximum head of 280ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $2,646.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • Available in stainless steel, aluminum, cast iron, and polypropylene
  • Maximum flow rate: 251 GPM
  • Maximum discharge head: 280ft
  • Maximum air pressure: 125 PSI
  • CE, ATEX, FDA certifications available
    • FDA available on stainless steel options only
  • Looped C spring valve
  • 3in NPT/3in ANSI connections available

The Iwaki Air TC-X801 Series is a line of heavy duty air operated double diaphragm pumps that are available in stainless steel, cast iron, aluminum, and polypropylene materials. They can operate with variable air pressures and are suited for both start/stop and fully continuous duty pumping applications. They can handle high pressure and ling discharge piping. Additionally, they come in either NPT, ANSI flange, or sanitary fitting connections. The metallic pumps operate with a maximum flow of 251 GPM and the non-metallic operated with a maximum flow of 216.6 GPM. Please see the datasheet for more details on operational differences.
