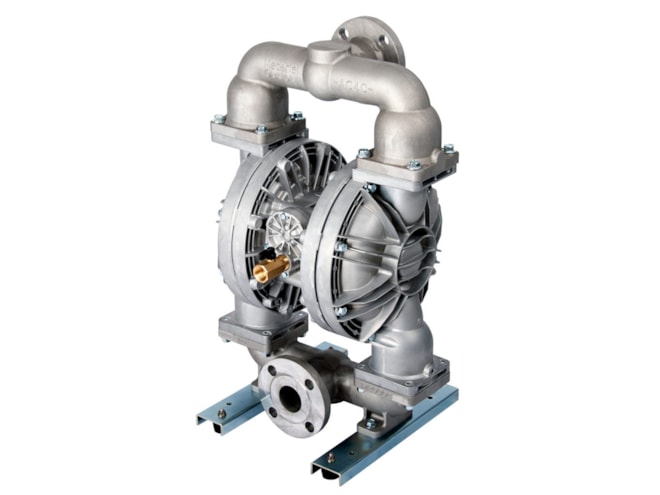

Iwaki Air TC-X401 Series Heavy Duty Air Motor Pump

Metallic or non-metallic air motor pumps with a maximum flow of 158.5 GPM and.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $1,908.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Materials available: Stainless steel, aluminum, cast iron, glass filled polypropylene, and PVDF
  • Maximum flow: 158.5 GPM
  • Maximum air pressure: 125 PSI
  • Maximum air consumption: 159.6scfm
  • 1 1/2in NPT or 1 1/2in ANSI connection options available
  • Looped C air motor technology

The Iwaki Air TC-X401 Series is a line of metallic and non-metallic air operated double diaphragm pumps containing Looped C air motor technology. The pumps can operate with variable air pressures and are suited for both start/stop and continuous duty operations. They can handle long discharge lines as well as high pressure applications. The metallic pumps have a maximum flow of 158.5 GPM and the non metallic pumps have a maximum flow of 118.9 GPM. Please see the datasheet for additional details on model differences.
