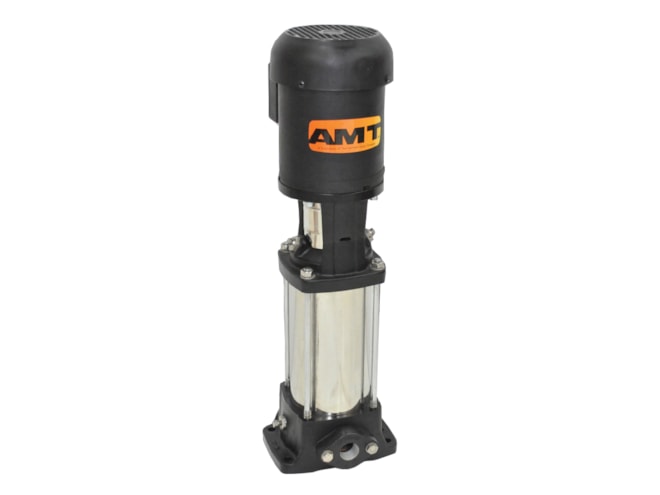

AMT MSV1 Series Multistage Booster Pump

Stainless steel and cast iron pump with models available in 3 to 27 stages.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $715.36
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • Stainless steel components Teflon wear rings
  • Cast iron base and adapter
  • 1in NPT cast iron flanges
  • NEMA 56C dual cycle
    • Single or three phase TEFC motors
  • EPDM/Tungsten carbide seal with Easy11 replacement feature
  • Models available in 3 thru 27 stages
  • 0.75 to 3 HP power options available

The AMT MSV1 series is a line of multistage booster pumps designed to handle high pressure, low liquid transfer applications where no suction life is required. They are non-self-priming (gravity feed) units. Typical installations include: hot and chilled water, boiler feed, condensate return, irrigation, high pressure washdown, booster service, and fire protection/sprinkler systems. The pumps feature a NEMA 56C dual cycle single or three phase TEFC motor, with power options ranging from 0.75 to 3.0 HP. These pumps have not been investigated for use in portable (drinking) water systems.
