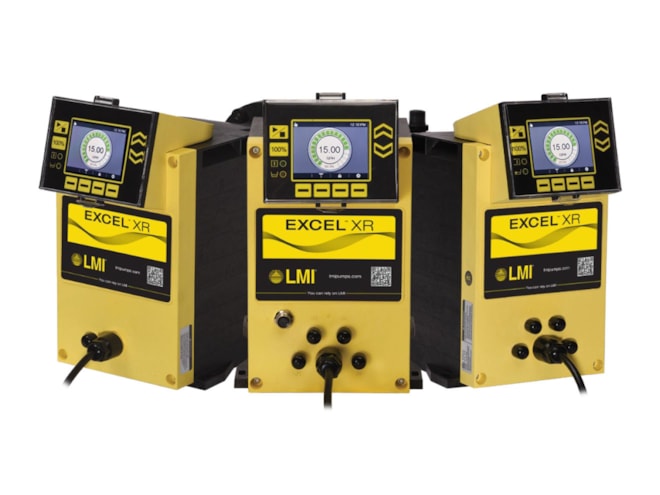

LMI Pumps EXCEL XRD Pump Drive Assembly

Replacement drive end for EXCEL XRD Chemical Metering Pumps, output up to 18 GPH/ 50psi. Manual and Enhanced control models with Modbus and Profibus protocols available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $2,946.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Replacement drive unit for EXCEL XRD Chemical Metering Pump (drive end only)
  • Configurations:
    • Manual control with single level float switch and remote start/stop
    • Enhanced control with pulse/tank level/4-20mA inputs, remote stop/start
  • Communication protocols:
    • Modbus RTU, Profibus DP (Enhanced models only)
  • Graphic display standard with all models
  • Max output ranges: 5.6 to 18 GPH / 175 to 50 PSI (respectively)
  • Power supplies: 120 to 240-250V

The LMI Pumps EXCEL XRD Pump Drive Assembly is a replacement drive end for the EXCEL XRD Chemical Metering Pump, with max output ranges up to 18 GPH (68.1 LPH) / 50 PSI (3.5 Bar). Power supplies come in 120 to 240 voltages. Each unit comes standard with a four color graphic display. Standard control configurations include a straightforward Manual model with two digital inputs. Enhanced control models are available that integrate combinations of pulse, 4-20mA, tank-level and pacing inputs, remote start/stop functionality, and Modbus or Profibus communication protocols. Enhanced models come with a 4-pin cord-set (additional 5-pin cord-set with control protocol configurations). This unit includes the drive end only.

Part Number Price Available
XRDM31-DR
Show Configuration
$4,290.00 2 in stock
XRD131-DR
Show Configuration
$3,127.00 1 in stock
XRD141-DR
Show Configuration
$3,180.00 1 in stock
XRD931-DR
Show Configuration
$3,597.00 1 in stock
XRDM41-DR
Show Configuration
$4,343.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
