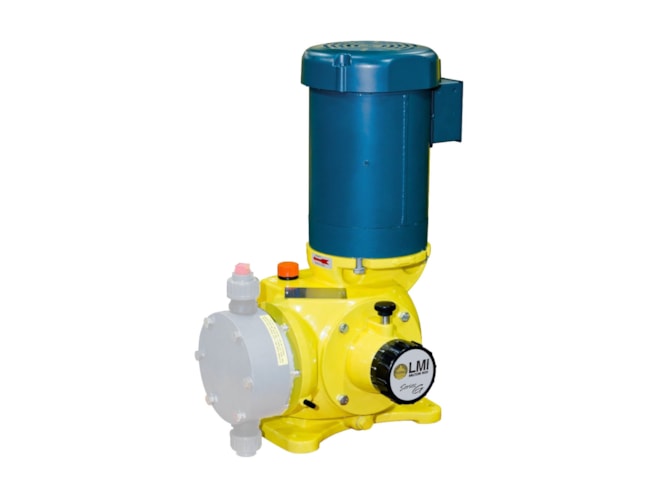

LMI Pumps Series G SG Pump Drive Assembly

Replacement drive end for Series G SG Metering Pumps, manual control with max output up to 300 GPH/ 50psi.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $4,270.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Replacement drive unit for Series G SG Metering Pump (drive end only)
  • Manual controls for precise stroke length adjustment
  • Designed to withstand corrosive environments
  • High-efficiency motor minimizes heat buildup
    • TEFC except with -X and -Y motor configurations
  • Max output ranges: 106 to 300 GPH / 150 to 50 PSI (respectively)
  • NEMA ratings
  • Motor requirements:
    • For SG5/6: 1HP / 0.75kW for phase-1 and -3
    • For SG7:
      • 1.5 HP / 1.1 kW for phase-1
      • 1 HP / 0.75 kW for phase-3
  • SPM: 43 to 173 @ 60 Hz / 36 to 144 Hz @ 50 Hz

The LMI Pumps Series G SG Pump Drive Assembly is a replacement drive end for the Series G SG Metering Pump, with max output ranges up to 300 GPH (1136 LPH) / 50 PSI (3.4 Bar). Control configuration includes a straightforward Manual model for precise stroke length adjustment, and is built into a durable housing design that protects against corrosive environments. SPM ranges are offered from 43 to 173 SPM @ 60 Hz ranges, with phase-1 and -3 TEFC motors with NEMA ratings (Mountless motor configurations are not TEFC). This unit includes the drive end only.
