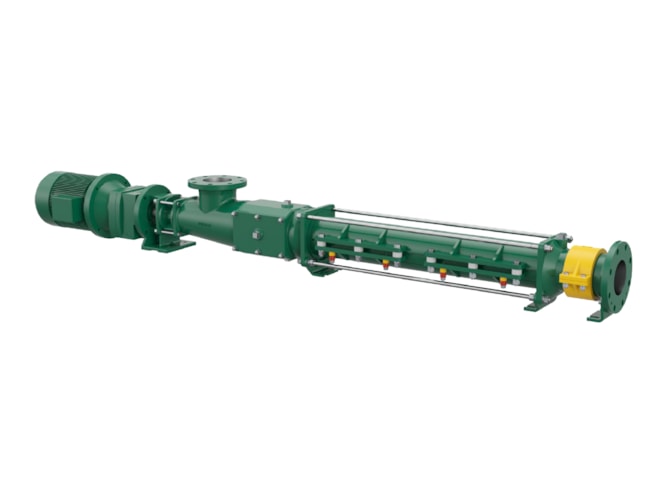

RotoPumps KWIK Series Pump

Quick dismantling pump series with a maximum capacity of 1500 GPM and maximum pressure of 350 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Capacity: up to 1500 GPM
  • Pressure: up to 350 PSI
  • Solids handling: up to 7% high solid content
  • Viscosity: up to 30,000cSt
  • Split coupling rod
  • Dual inspection windows
  • Horizontal orientation

The RotoPumps KWIK series is a line of quick dismantling pumps built on the Maintenance In Place (MIP) platform. The pump contains several features including a specially designed clamp that enables quick removal of rotor and stator without dismantling discharge line and an improved rotor stator geometry minimizes wear due to lower rubbing velocities. The Cardan type of UJ joint employs two sets of perpendicular pins, each providing freedom of angular movement, which facilitates the transmission of angular loads. It also withstand higher axial loads.

Additionally, the split coupling rods allows for quick dismantling and the dual inspection windows provides access to the split coupling rods. The KWIK series allows for the maintenance of pumps without dismantling of the suction and delivery pipelines. The one piece construction of stator minimizes the risk of media leakage unlike split stator design and there's no need for extra dismantling space. It is ideal for use in industries such as wastewater, oil and gas, sugar, biogas, paper, paint and varnish, marine and ship building, and mining and explosives.
