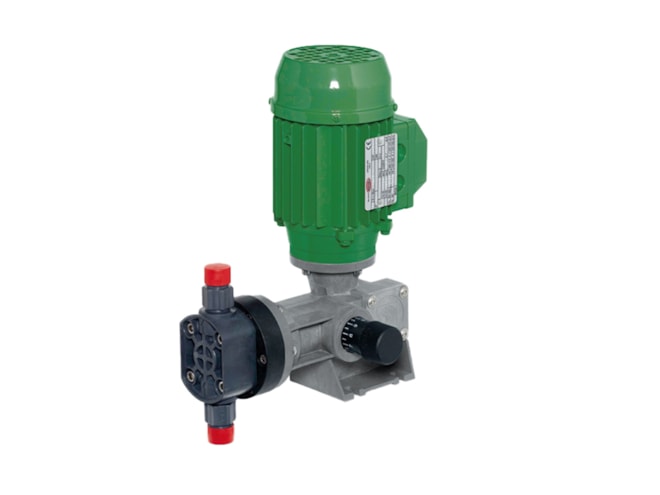

FPZ Model FM Series Metering Pump

Mechanical diaphragm dosing pump with 0.09 kW 4 pole electric motor.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $1,174.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 0.09kW 4 pole electric motor
  • BSPP valve connections standard
  • PP casing for gearbox
  • Endless screw worm gear box

The FPZ Model FM Series Metering Pump is a mechanical diaphragm dosing pump with 0.09 kW 4 pole electric motor. It has standard BSPPm valve connections and a reinforced PP casing for gear box. The endless screw worm gear box is supported by bearings and fully lubricated by grease.

The standard 3 phase voltages are 220-240V(Δ) 380-415 (Y) 50Hz  / 220-280V(Δ) 380-480 (Y) 60Hz. The standard 1 phase voltage 230V- 50Hz. Motors are available to meet a wide range of alternative specifications including: different voltages, frequencies, higher insulation standards and more.

Manual Stroke adjustment can be made with the pump at rest or in operation. The enclosure has a PTFE coated diaphragm. Installation kit included (for pump  with wetted parts in PP or PVC).

Applications

  • Fertigation
  • Water treatment
  • Food industry
  • Cooling towers
