FPZ Model SDP Series Solenoid Metering Pump

Solenoid metering pump for low flow rates with integrated microprocessor.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $559.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Foot mounding dosing pump
  • Corrosion proof reinforced polypropylene housing
  • 110V 60 Hz power supply
  • PTFE diaphragm
  • IP65

What's in the Box

  • Injection valve
  • 59 inch suction pipe
  • 59 inch delivery pipe
  • Strainer

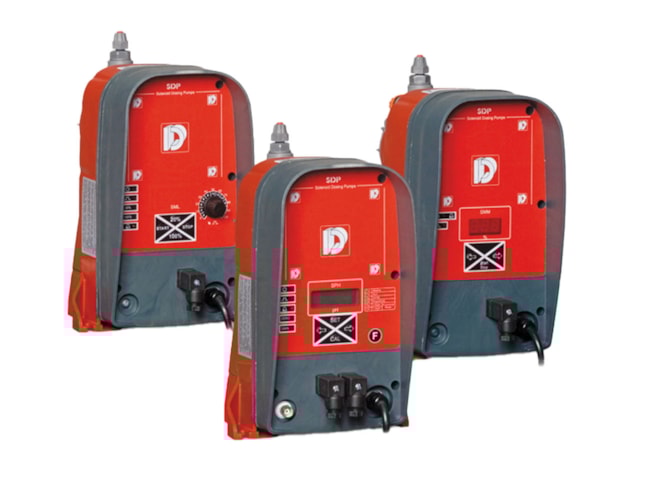

The FPZ Model SDP Series Solenoid Metering Pump is a solenoid metering pump for low flow rates with integrated microprocessor. It has corrosion proof reinforced polypropylene housing with a solid PTFE diaphragm. It has a 110V 60Hz standard power supply. All models include a level control setting (probe not included).

SMC Analogic dosing pump. Potentiometer manual adjustment range 10–100% with double regulating scale. The SML version is equipped with a port for level control

SMM Digital dosing pump. Operating function regulated by microprocessor.  Manual flow rate adjustment with 3 digit display from 0–100%.

SSW Digital dosing pump. Operating function is regulated by a microprocessor and 12X2 LCD display.  Multifunction or proportional by incoming digital or analogic signal: 0–20 mA; 1 x n; 1: n; 1 x n–M.

SMF Dosing pump with pH, Rx, Cl built in instruments. Operation mode: 0–14 pH ; –1000 : +1400mV ; 0–2, 20, 200 ppm Temperature compensation 0–100°C ; 4–20mA out–put Protection IP65 Predisposed for level probe setting.

Applications

  • Drinking water treatment
  • Cooling Tower water treatment
  • Pools
  • Hydroponics
  • Aquaculture
  • Car Wash
