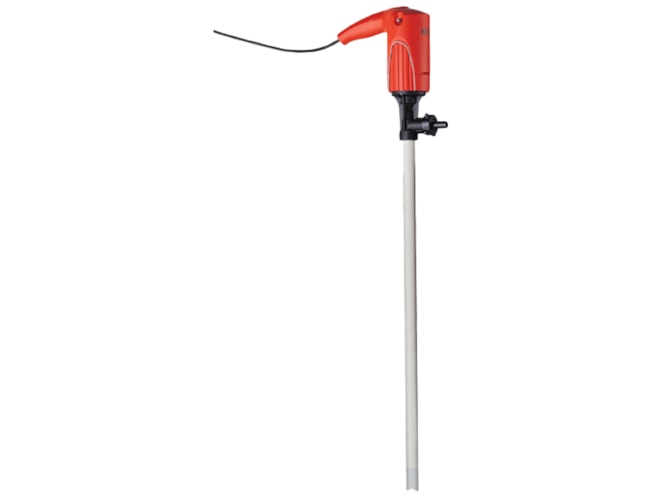

Flux Pumps JUNIORFLUX F 314 Sealless Drum Pump

Name: Flux Pumps JUNIORFLUX F 314 Sealless Drum Pump
Availability: BackOrder

Includes fixed commutator motor; sealless for pumping only one medium.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.

Request pricing below.

Configured Part No. {{ calcPartNumber }}

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Flux Pumps
Usually ships in 4 to 6 weeks

Features

27 to 57 l/min flow rate
8.5 mwc max. delivery head
1 to 250 mPas viscosity
25 to 32mm outer tube diameter
500, 700, 1,000mm immersion length
Outer tube materials:
- Polypropylene
- Polyvinylidene fluoride
- Stainless steel
Media/fluids:
- Acids and alkalis
- Liquid fertilizers
- Cleaning solutions
- Water
- Concentrated nitric acid
- Sulphuric acid
- Acetic acid

The Flux Pumps JUNIORFLUX F 314 Sealless Drum Pump is suitable for pumping comparatively small quantities out of containers such as canisters or drums of up to 200 liters. The small outer tube diameter makes it possible to pump out of narrow openings.

This sealless drum pump transfers the medium from the rotor along the shaft into the inner tube to the outlet. In the inner tube, the medium has the same level as in the container. When emptying it flows off via the relief openings.

The JUNIORFLEX motor and pump tube are fixed with screws and includes a mains connection to enable very long operating times. An overload cut-out switch prioritizes high operational safety, and the pump can be single-handedly operated.
