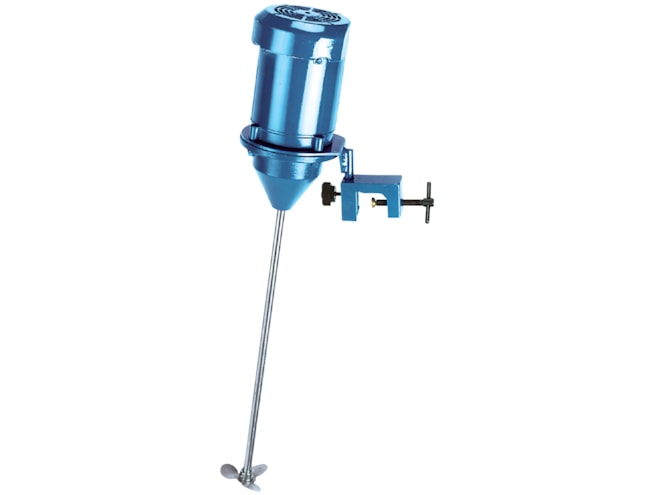

Neptune BN Series Small Batch Mixer

Viscosity up to up to 100cps; volume up to 100gal.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,247.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 1/4 to 1/2 HP
  • Choice of:
    • Totally-enclosed fan-cooled (TEFC)
    • Explosion-proof class 1 group D (EP)
    • Air motor
  • Small, direct drive designed for mixing small batches of low viscosity fluids
  • 1,750 rpm direct drive
  • Clamp mount

The Neptune BN Series Small Batch Mixer includes a clamp that cannot slip, preventing the propeller form hitting the side of the tank. The mixer can quickly and easily adjust between "angled-on-center" and "angled-off-center" positions without tools.

The coupling is fully enclosed, and the shaft and prop are constructed of 316SS.

To develop:

  • 1/4 HP at 1,725 rpm requires 10 cfm (0.28 cmm) at 15 psi (1.0 bar)
  • 1/3 HP at 1,725 rpm requires 12 cfm (0.34 cmm) at 20 psi (1.4 bar)
  • 1/2 HP at 1,725 rpm requires 22 cfm (0.62 cmm) at 40 psi (2.8 bar)
