Neptune Drum Mixer

Viscosity up to 32,000cps; volume up to 55gal.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,336.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 1/4 to 3/4 HP
  • 29 to 33-1/8in (737 to 838mm) shaft length
  • Cast aluminum housing material
  • 5/8in (16mm) shaft diameter
  • 3-3/4in (95mm) propeller size
  • Low Viscosity Drum options:
    • Mixer E: 100cps viscosity, 55gal volume
    • Mixer F: 100cps viscosity, 55gal volume
  • High Viscosity Drum options:
    • Mixer H: 8,000cps viscosity, 55gal volume
    • Mixer HGS: 32,000cps viscosity, 55gal volume

The Neptune Drum Mixer includes an air control valve to allow speed adjustment, and the motor may be stalled without damage. All drum series mixers fit through the standard 2in (51mm) bung on 55-gallon (208 liter) drums.

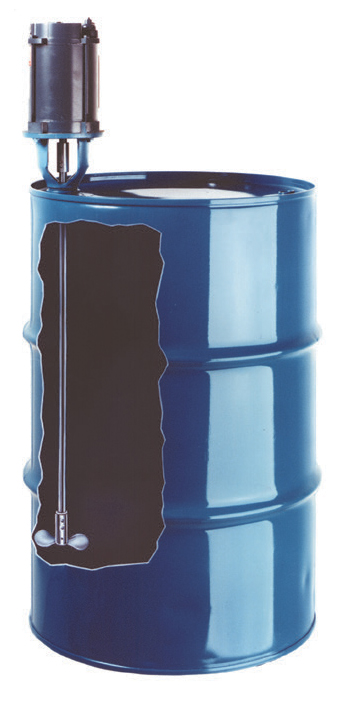

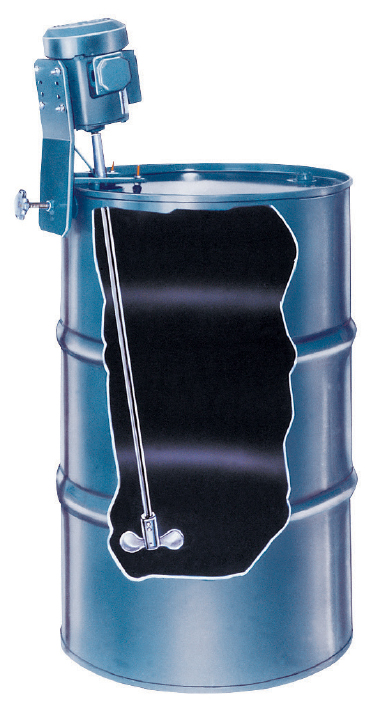

The E and F Series are equipped to handle low viscosity/water-like liquids that use a folding propeller for proper drum installation. The propeller folds for entry and opens to a 3.75in (95.3mm) diameter when operating. The motor is available in TEFC or explosion-proof enclosures (56C frame), and air motors are also available.

The H and HGS Series, equipped with permanent blades for handling higher viscosity fluids up to either 8,000 or 32,000cps. The available electric or air motor are powered to 1 HP. These series are designed for mixing extremely heavy or shear-sensitive chemicals in drums.
