Neptune Gear Driven Bulk Container Mixer

Viscosity up to 5,000cps; volume up to 500gal.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $3,940.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 35.5 to 45in (902 to 1,143mm) shaft length
  • 3/4 to 1in (19 to 25mm) shaft diameter
  • Available with bung or bracket mount capability, depending on the application
  • Cast aluminum housing material
  • 9in propeller operating diameter
  • Motor options:
    • Totally-enclosed fan-cooled (TEFC)
    • Air motor
    • Explosion proof (RGT Series only)

The Neptune Gear Driven Bulk Container Mixer includes a 316SS propeller and shaft material as standard, and is available in three series suitable for a range of applications.

The JGT Series runs at 350 rpm and mounts to the tank. The 316SS propeller folds to fit through 2in openings, and opens to a 9in operating diameter. The standard usable length is 33in (838.2mm), with an overall length of 35.5in (901.7mm).

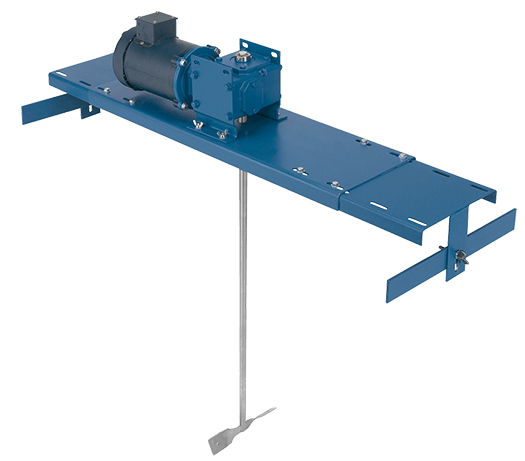

The RGT Series also runs at 350 rpm and mounts on a bracket. In addition to the 316SS propeller that folds to fit through 2in openings and opens to a 9in operating diameter, the RGT includes a second folding propeller that bolts anywhere on the 3/4in (19.1mm) shaft.

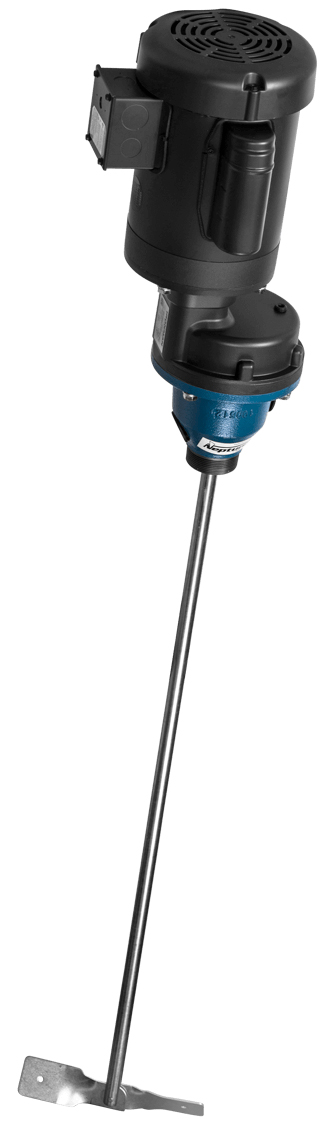

The HGL Series runs at 430 rpm and mounts to a 2in coupling or flange. It includes the same propeller and second propeller specifications as the RGT series.
