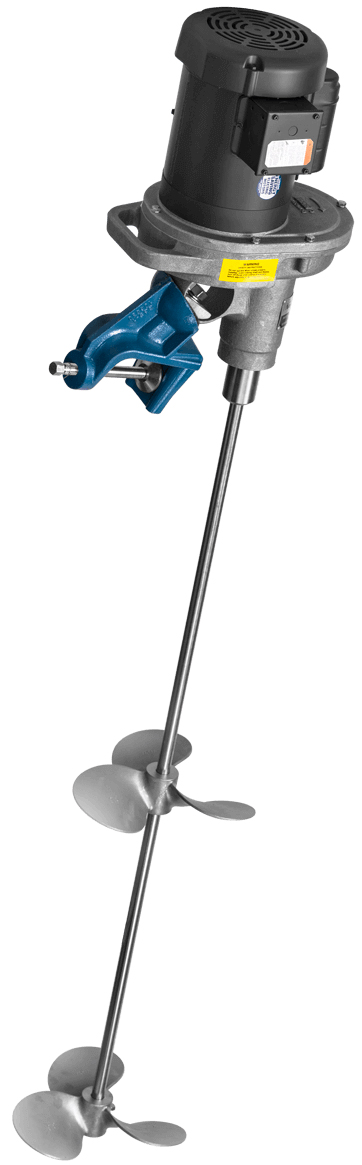

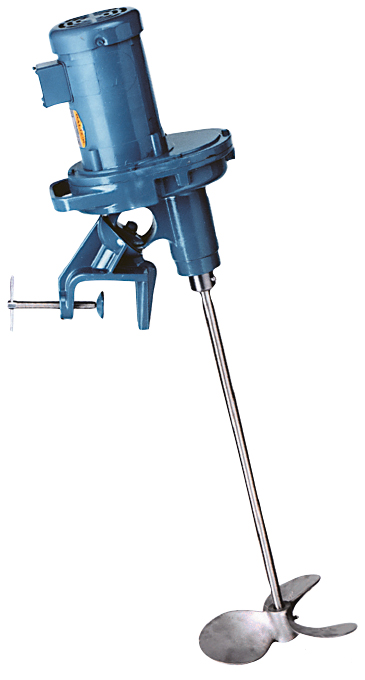

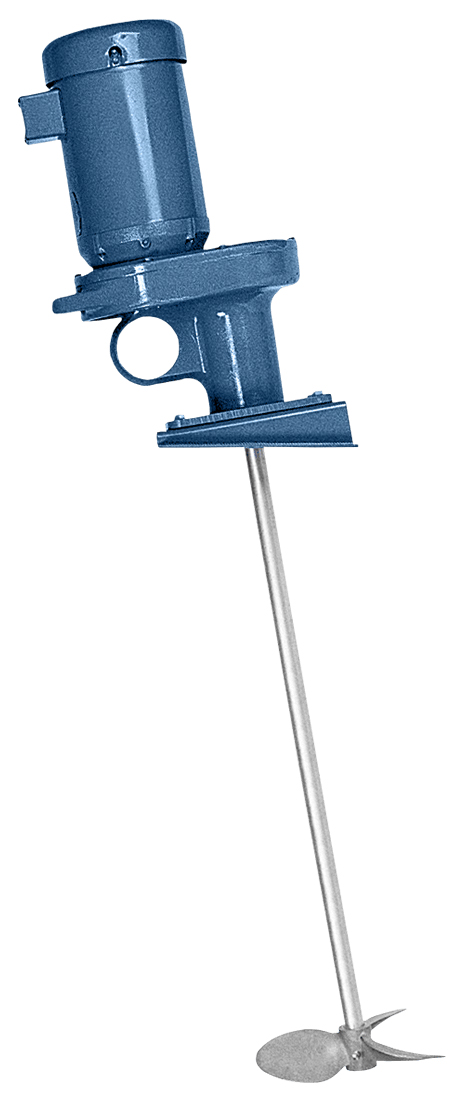

Neptune JG Series Gear Drive Mixer

Viscosity up to 25,000cps; volume up to 5,000gal.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $3,055.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 48 to 72 (1,219 to 1,829mm) shaft length
  • 3/4 to 1-1/4in (19 to 32mm) shaft diameter
  • 10 to 16in (254 to 406mm) propeller size
  • Clamp, cup plate, flange, and angle-riser mount options available
  • Motor options:
    • Totally enclosed, fan-cooled (TEFC)
    • Explosion-proof enclosures, Class 1, Group D (EP)
    • Air motor
  • 316SS propeller and shaft material
  • Cast aluminum housing materials

The Neptune JG Series Gear Drive Mixer is designed for difficult mixing applications. The mixer comes with a heavy helical gear, 350 rpm motor. The grease-filled gearbox eliminates oil and the possibility of oil contaminating the process. There are no clutches to slip, wear or replace, and square pitch 1.0 ration marine propellers are used exclusively. The flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs.

A vibration-absorbing pad is included as a standard feature, and the shaft bearings are permanently lubricated. The mounting clamp has an adjustable angle of entry, via an indexed ball-and-socket design that achieves various process results.

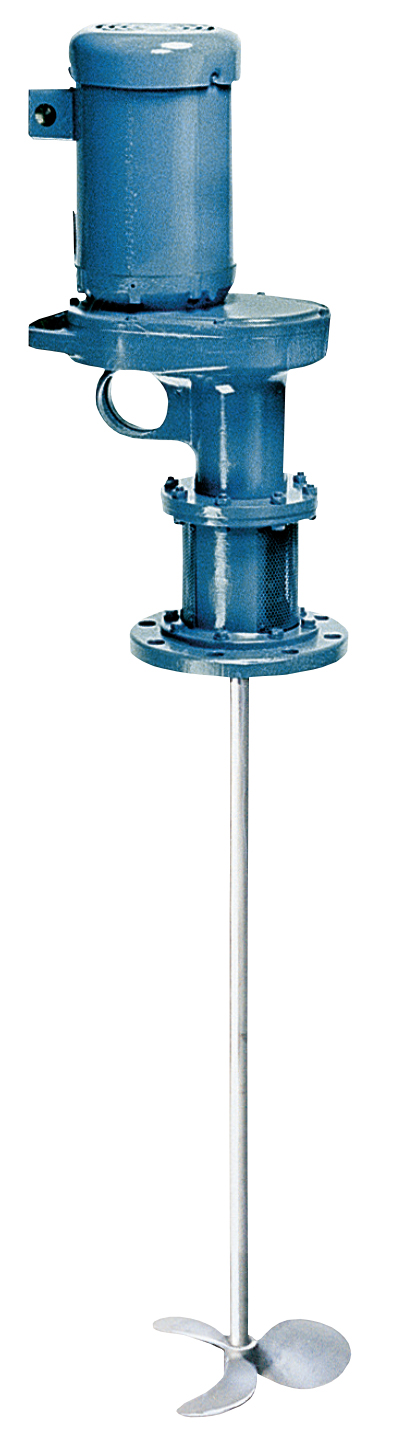

The JG Series also includes options for JGF (flange mount) and JGR (angle-riser mount) mixers.

To select the right mixer for a given application, refer to Neptune's mixer selection guide.
