Neptune By-Pass Feeder

Vertical style, available with dish bottom in or out.

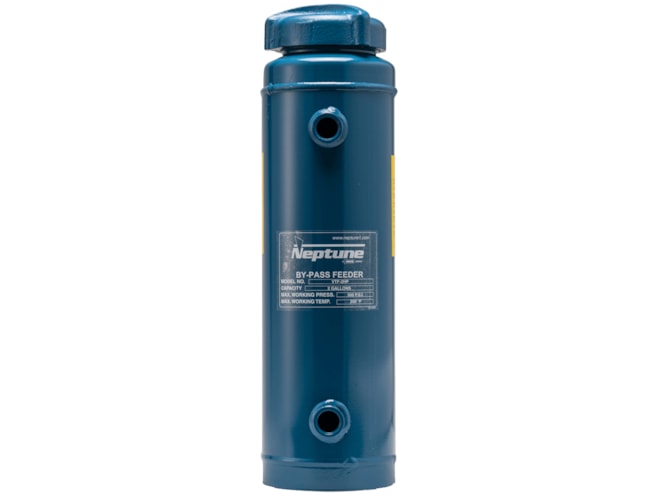

Neptune By-Pass Feeder - dish bottom in

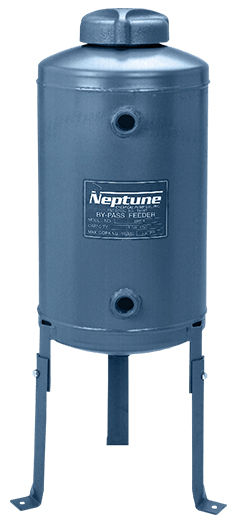

Neptune By-Pass Feeder - dish bottom out

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.

Starting Price: $344.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Product Specs

Highlights...

By Neptune
Call for Availability

Features

2 to 5gal capacity
300 PSI (20.7 bar) max. pressure

The Neptune By-Pass Feeder provides a convenient methods of introducing treatment chemicals into closed water recirculation systems. The feed is ideal for treating hot and chilled closed water recirculation loops use din heating and air conditioning systems, process heating and cooling or large engine water jackets.

The By-Pass Feeder includes a high-pressure cap rated to 300 PSI (20.7 bar) as a standard. The caps are designed for quick-opening, high-pressure closure for better sealing with less force, and eliminate the need for tools. The design binds the cap tightly when under pressure, making it necessary to bleed pressure from the tank before removing.

Note: A Neptune Ring-Top Bag Filter (sold separately) is required for operation.

Spec Sheets

Neptune By-Pass Feeder datasheet (1.7 MB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
