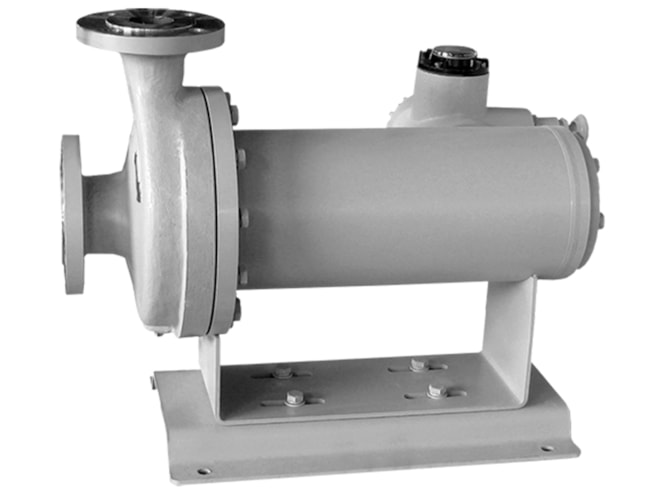

Hayward Tyler HV Hollow Shaft Canned Motor Pump

Basic canned motor pump designed using a hollow shaft for inner circulation.

Call for pricing

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Part Number
  • HV
Highlights...

Features

  • 2650 GPM (600 m3/h) max capacity
  • 525ft (160m)max total head
  • 177 HP max output
  • VFD compatible
  • Materials of construction:
    • Metallic materials (wetted components): 304SS, 316SS, 316LSS, Hastelloy C4, C276
    • Insulation materials: H, C, Super-C
    • Gasket: PTFE, metal spiral wound
  • Flange standards available: ANSI, ASME, HG, DIN, JIS, GB, SH
  • Thrust balanced impeller
  • HPB monitoring options:
    • Local monitoring
    • Remote panel mounting output
    • Connect to existing PLC or DCS through 4-20mA digital signal
  • API 685 design
  • Standard explosion-proof terminal box

The Hayward Tyler HV hollow shaft canned motor pump is a basic pump designed using a hollow shaft for inner circulation. The HV pump is designed to be a no leakage, no external lubrication, airtight, low noise/vibration, and compact pump in applications that demand robust and reliable performance.

Typical industry applications:

  • Chemical
  • Petrochemical
  • Hydrogen production
  • Nuclear
  • Offshore oil and gas
  • Aerospace
  • HVAC
  • Locomotive cooling system
  • Refrigeration
  • Pharmaceuticals
