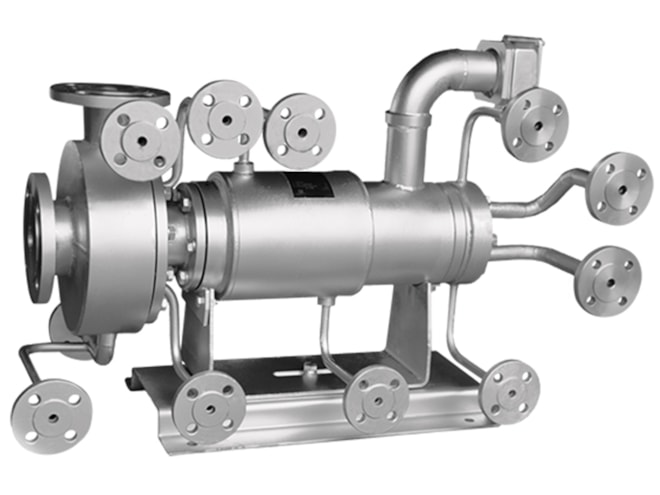

Hayward Tyler HR High Melting Point Canned Motor Pump

1320 GPM pump with heating jackets to maintain an increased temperature around the motor.

Call for pricing

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Part Number
  • HR
Highlights...

Features

  • 1320 GPM (300 m3/h) max capacity
  • 295ft (90m)max total head
  • 180 HP max output
  • VFD compatible
  • Materials of construction:
    • Metallic materials (wetted components): 304SS, 316SS, 316LSS, Hastelloy C4, C276
    • Insulation materials: H, C, Super-C
    • Gasket: PTFE, metal spiral wound
  • Flange standards available: ANSI, ASME, HG, DIN, JIS, GB, SH
  • Thrust balanced impeller
  • HPB monitoring options:
    • Local monitoring
    • Remote panel mounting output
    • Connect to existing PLC or DCS through 4-20mA digital signal
  • API 685 design
  • Standard explosion-proof terminal box

The Hayward Tyler HR high melting point canned motor pump features a series of heating jackets to maintain an increased temperature around the motor, making it ideal for use with liquids with high melting point temperatures. The HR pump is designed to be a no leakage, no external lubrication, airtight, low noise/vibration, and compact pump in applications that demand robust and reliable performance.

Typical industry applications:

  • Chemical
  • Petrochemical
  • Hydrogen production
  • Nuclear
  • Offshore oil and gas
  • Aerospace
  • HVAC
  • Locomotive cooling system
  • Refrigeration
  • Pharmaceuticals
