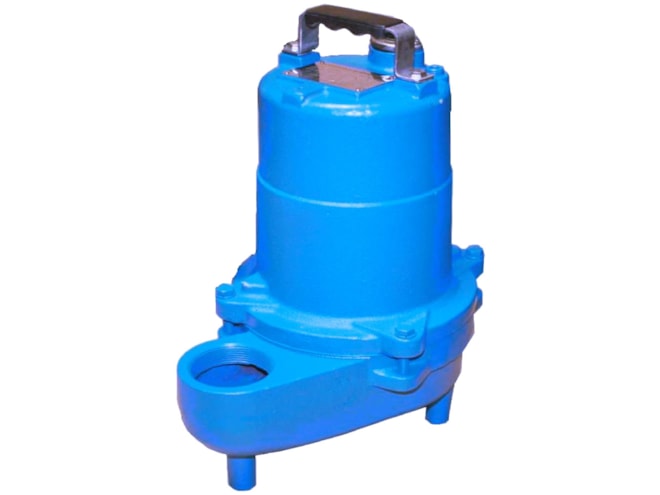

Federal Pump PIB Series Submersible Sewage Pump

85 GPM sewage pump capable of handling 2-inch solids with 26ft total dynamic head.

$499.00
Part Number
  • PIB
Highlights...

Features

  • 0.5 HP motor
    • 1750 RPM
    • 115/1/60 voltage
  • 2in NPT discharge port
  • 26ft max total dynamic head
  • 140°F max fluid temperature (continuous operation)
  • Cast iron construction (class 30)
  • 2-vane cast iron open impeller
  • Stainless steel shaft (420 series)
  • Stainless steel hardware (300 series)
  • Carbon ceramic mechanical seal
  • Oil-filled sealed high torque motor
  • Auto-thermal overload reset
  • Mechanical swing-type submersible float switch
  • 20ft strain relief power cable

The Federal Pump PIB Series submersible sewage pump is equipped with a 0.5 HP motor that runs at 1750 RPM to ensure optimal performance under demanding conditions. Equipped with a 2in NPT discharge port, the PIB Series provides a seamless connection for easy installation. The pump's versatility extends to a maximum total dynamic head of 26ft, making it suitable for a wide range of demanding applications.

The PIB Series features a cast iron construction that can withstand the rigors of continuous operation. The stainless steel shaft ensures longevity and corrosion resistance, while the 2-vane cast iron open impeller provides efficient pumping performance. The pump's internals feature a carbon ceramic mechanical seal, ensuring a secure and leak-free operation. Stainless steel hardware further enhances the pump's resistance to corrosion and wear.

Applications:

  • Residential sewage
  • Light commercial sewage
  • High-capacity sump
  • Water transfer
  • Effluent
