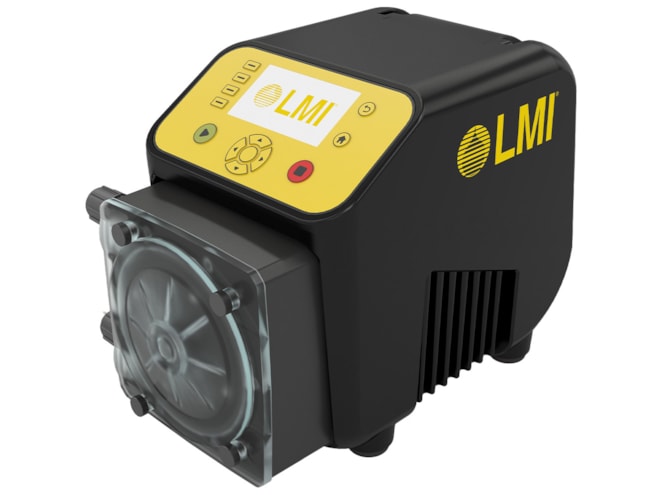

LMI Pumps KBL Series Peristaltic Metering Pump

Cased-drive peristaltic pump with suction lift up to 30ft and no moving parts in liquid path.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $3,720.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • Maximum flow up to 158.5gph (600lph) at full speed
  • Up to 110psi (7.6bar)
  • 4.33in color LCD display
  • 200:1 turndown
  • Multiple tubing options to cover a wide range of chemicals and applications
  • Tool-free tube change
  • Optical tube leak detection standard
  • Remote inputs available:
    • SCADA
    • Modbus
  • Onboard run timer for predictive maintenance
  • 4 programmable Form-C relays
  • Standard 2-year warranty

The LMI Pumps KBL Series peristaltic metering pump is a versatile and economical peristaltic metering pump for high-precision dosing in water, wastewater treatment, and industrial applications. It features an easy-to-use user experience featuring one-button switching between local and remote operation and an intuitive user interface with a 13-button keypad and a 4.33in color display.

Applications

  • Industrial water treatment
  • Ink, dye, and pigment
  • Sulfuric acid
  • Plating solutions
  • Fungicide/biocide
  • Anti-scalant
  • Seedcoating
  • Reagents

This product can be used in the following applications:

Part Number Price Available
KBL-4-4-AAH2-1
Show Configuration
$10,000.00 10 in stock
KBL-3-4-AAK1-1
Show Configuration
$6,900.00 9 in stock
KBL-4-4-ACK2-1
Show Configuration
$10,000.00 5 in stock
KBL-2-4-ABH1-1
Show Configuration
$3,720.00 3 in stock
KBL-2-4-AAD1-1
Show Configuration
$3,720.00 1 in stock
KBL-4-4-AAL1-1
Show Configuration
$10,000.00 1 in stock
KBL-4-4-AAP1-1
Show Configuration
$10,000.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
