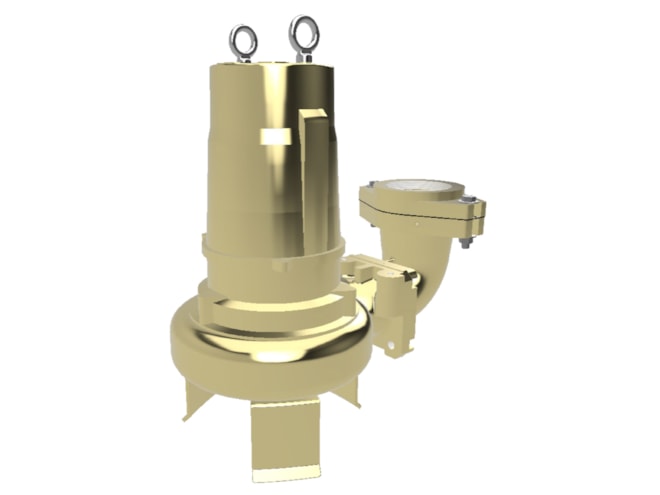

Magnus DVT Series Submersible Chopper Sewage Pump

Solid-handling, high-temperature resistant chopper pump with carbide-edged impellers and serrated chromium suction plates.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $4,000.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...
  • By Magnus
  • Usually ships in 1 week

Features

  • Models:
    • 2 HP: 3450 RPM
    • 3 HP: 1750 RPM
    • 5 HP: 1750 RPM
  • 3in and 4in NPT discharge ports (both included)
  • Handles up to 2.5in solids
  • Cast iron construction
  • 170°F max operating temperature
  • Normally open (N/O) moisture sensor output
  • Normally closed (N/C) thermal overload sensor output
  • 20ft power cord

The Magnus DVT Series is a submersible chopper sewage pump that is reliable, solid-handling, and high-temperature resistant. It is uniquely designed with sharpened carbide-edged impellers and serrated chromium suction plates that shred incoming solids before pumping them out of a receiver. The DVT Series is equipped with a proprietary short-sweep discharge elbow, making it an industry leader in performance while also fitting tight installation requirements. This pump is suitable for both residential and commercial needs and comes in 2, 3, and 5 HP models.

This product can be used in the following applications:
