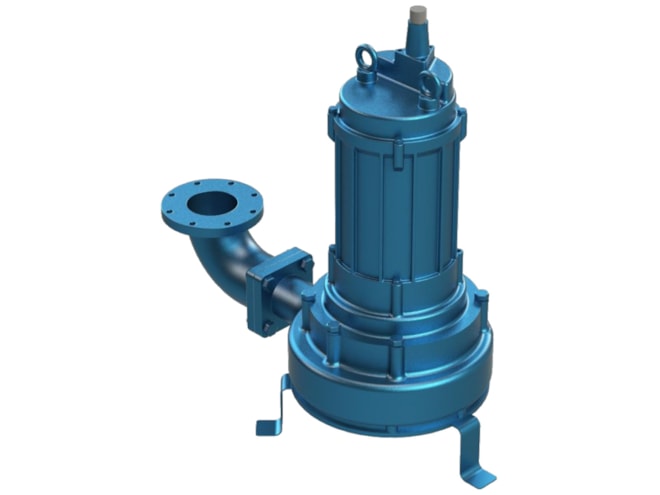

Federal Pump MSC Series Submersible Chopper Sewage Pump

Fully submersible, non-clog type pump with capacities up to 500 GPM and up to 65ft discharge heads.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,795.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 3in or 4in discharge port size
  • 2 to 10 HP models available
  • Gallons per minute (GPM):
    • 2 HP: 50 to 175 GPM
    • 3 HP: 50 to 250 GPM
    • 5 HP: 50 to 400 GPM
    • 7.5 HP: 50 to 500 GPM
    • 10 HP: 50 to 500 GPM
  • ASTM A48 class 35 cast iron casing and motor housing
  • ASTM A48 class 35 cast iron with tungsten carbide edge impeller
  • ASTM A532 class III type A suction place
  • 400 series stainless steel shaft
  • Silicon carbide/ nitrile buna elastomer mechanical seal

The Federal Pump MSC Series is a submersible chopper sewage pump that uses a single-vane impeller design to pump solids. The impeller shreds and grinds the solids to prevent larger solids from clogging the pump, piping, or disposal system. This is achieved through the use of a hardened tungsten carbide-edged rotating impeller that cuts and chops against the stationary chromium suction plate, reducing solids to particles. This prevents downstream clogging that is often caused when larger solids are pumped through the impeller and into the piping system.

The MSC Series is supported by heavy-duty industrial-grade shafts, bearings, and increased motor insulation, provides 20 starts per hour, and is backed by Federal Pump’s three-year limited warranty.

Applications

  • Sewage
  • Effluent
  • Industrial wastewater
