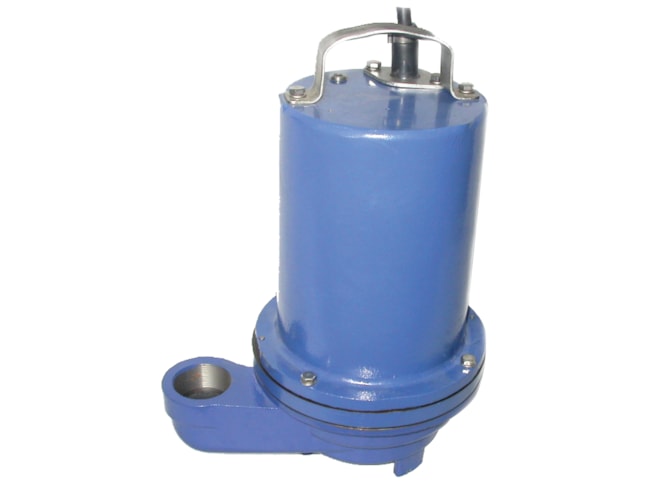

Power-Flo Technologies PFSTEP Series Effluent Pump

General purpose for residential, light industrial, and commercial sump or effluent applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,782.90
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • 76 GPM max. flow
  • 79ft shutoff
  • 2in NPT female vertical discharge
  • 0.75in spherical solids manual operation
  • 104°F continuous liquid temperature
  • Cast iron, class 30 motor housing/volute
  • Cast iron, class 30 seal plate
  • Voltage/power cord options:
    • 115V: SJTOW, 14/3 Cord with plug, .39in diameter
    • 230V: SOW, 14/3 Cord with plug, .53in diameter
  • Stainless steel shaft and hardware
  • Buna-N square rings
  • Seal:
    • Outboard
    • Single mechanical
    • .625in Type C, U.S. Seal
    • Oil-filled chamber
    • Carbon/ceramic/Buna-N

The Power-Flo Technologies PFSTEP Series Effluent Pump consists of a single vane enclosed impeller, constructed of polypropylene with a stainless steel insert. It is painted with air dry enamel paint, and uses single row, ball, oil-lubricated upper and lower bearings. The single phase, oil-filled motor uses Class B insulation, and uses a Permanent Split Capacitor (PSC) with overload protection.

Manufacturer Stock

Part Number Price Available
PFSTEP522
Show Configuration
$1,782.90 23 in stock
PFSTEP512
Show Configuration
$1,782.90 13 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
