Power-Flo Technologies PFEV512 Series Effluent Pump

Manual or automatic (wide angle float) control options.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $729.73
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Power-Flo Technologies PFEV512 Series Effluent Pump datasheet - Manual operation Power-Flo Technologies PFEV512 Series Effluent Pump datasheet - Automatic operation
Highlights...

Features

  • 62 GPM max. flow
  • 49ft shutoff
  • 0.5 HP
  • 2in FNPT vertical discharge
  • 77°F continuous liquid temperature
  • Cast iron, class 30 motor housing/volute
  • Cast iron, class 30 seal plate
  • Industrial grade power coating paint
  • Operation options:

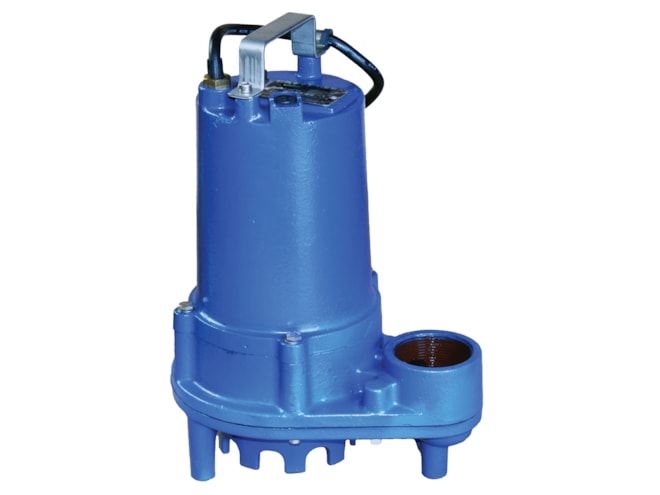

    • Manual - No float

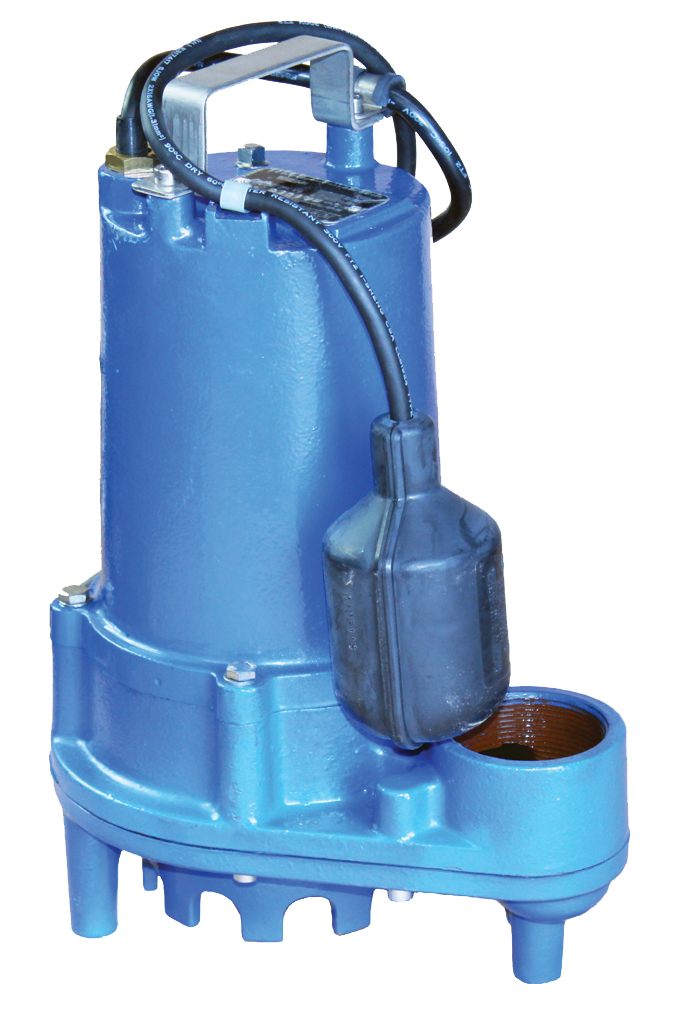

    • Automatic - Wide angle float; level control:
      • Mechanical
      • Normally open (N/O)
      • 16/2
      • SJOW cord with piggy-back plug
      • Tether adjustable

The Power-Flo Technologies PFEV512 Series Effluent Pump is a general purpose pump for residential, light industrial, and commercial sump or effluent applications. It uses a cast iron, class 30, multi-vane vortex impeller with stainless steel shaft and hardware. It uses a class B insulated, oil-filled, single phase motor. The motor has a Permanent Split Capacitor (PSC) that includes overload protection.

Manufacturer Stock

Part Number Price Available
PFEV512
Show Configuration
$729.73 20 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
