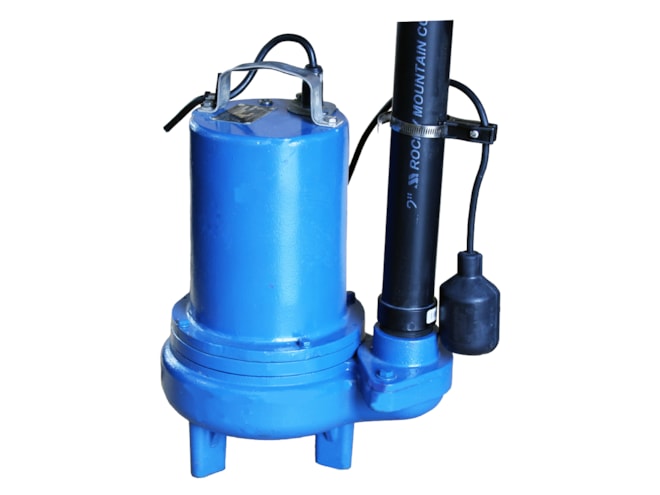

Power-Flo Technologies PSE51A Wide Angle Float Sewage Pump
1,750 RPM, 60Hz.
Overview
Features
- 0.5 HP
- 115V, single phase
- 2in FNPT vertical bolt-on flange discharge
- 104°F continuous liquid temperature
- Cast iron, Class 30 motor housing, volute, impeller
- Level control:
- Wide angle, mechanical, normally open (N/O)
- 16/2, SJOW cord with piggy-back plug
- 3.5in min. tether
- On-off adjustable
- Seal:
- Inboard
- Single mechanical
- 0.625in, oil-filled reservoir
- Carbon/ceramic/Buna-N with secondary exclusion seal
Description
The Power-Flo Technologies PFCSE51A Wide Angle Float Sewage Pump is a submersible pump designed for typical raw sewage applications. It consists of a 2-vane, open type impeller with stainless steel shaft and hardware. The motor is constructed with Class B insulation, is oil-filled, and uses squirrel cage induction. The motor is single phase with a permanent split capacitor (PSC), and includes overload protection.
