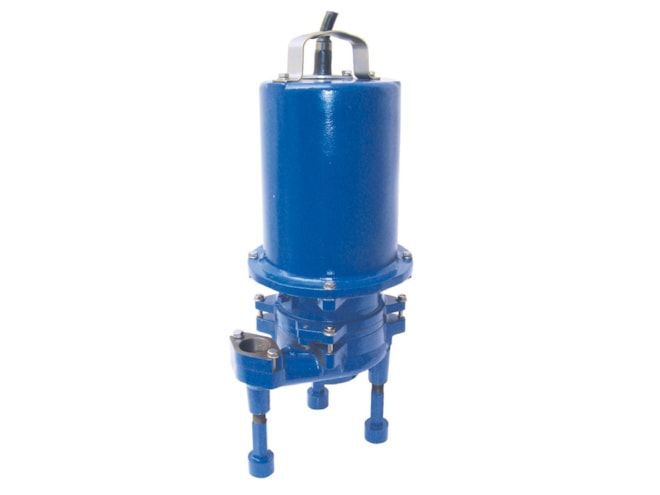

Power-Flo Technologies PFG-HH Series High Head Grinder Pump

125ft shut off.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $3,620.07
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • 30 GPM max. flow
  • 2 HP, 3450 RPM, 60Hz
  • 1.25in NPT vertical bolt-on flange discharge
  • 160°F intermittent liquid temperature
  • Cast iron, Class 30 motor housing, volute, and seal plate
  • Voltage/phase options:
    • 200/1
    • 230/1
    • 200/3
    • 230/3
    • 460/3
  • Seal:
    • Tandem double mechanical
    • 7/8in inner, 3/4in outer
    • Oil-filled reservoir
    • Carbon/ceramic/Buna-N
  • Single row, ball, oil-lubricated upper and intermediate bearings
  • Sleeve, oil-lubricated lower bearing

The Power-Flo Technologies PFG-HH Series High Head Grinder Pump is designed to reduce domestic, commercial, institutional, and light industrial sewage to a finely ground slurry. The pump is composed of a bronze, dynamically-balanced, 12-vane, ISO G6.3-certified, vortex impeller with pump out vanes on the back side. The shredding ring, cutter, shaft, and hardware are stainless steel. The motor is composed of Class B insulation, is oil-filled, and uses squirrel cage induction. The motor is available in either single or three phase. The single phase uses a capacitor start/run, and requires a starter or a control panel that includes the capacitors; overload protection is included. The three phase motor is a dual voltage 230/460.

This product can be used in the following applications:

Manufacturer Stock

Part Number Price Available
PFG2022HH
Show Configuration
$3,620.07 88 in stock
PFG2032HH
Show Configuration
$3,620.07 22 in stock
PFG2002HH
Show Configuration
$3,620.07 12 in stock
PFG2042HH
Show Configuration
$3,620.07 11 in stock
PFG2062HH
Show Configuration
$3,620.07 6 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
