Power-Flo Technologies SGR Series Grinder Pump

24in diameter; 60 to 84in depth options.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 1.25in discharge coupling, stainless steel discharge
  • 4in hub inlet, shipped loose
  • 1.5in NPT nylon coupling electrical hub
  • Stainless steel float bracket with 3 cord grips
  • 2in NPT stainless steel bolt-on coupling vent
  • Level controls (qty 3):
    • Narrow angle, mechanical, normally open (N/O)
    • Single pole, single throw
    • 10 AMP @ 120V, 3 AMP @ 240V
    • SJOOW, 18/2 with weight

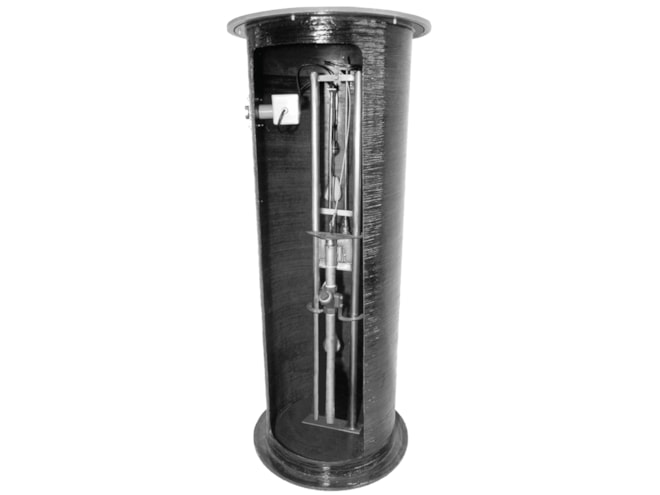

The Power-Flo Technologies SGR Series Grinder Pump is designed to reduce domestic, commercial, institutional, and light industrial sewage to a finely ground slurry. It is composed of a solid fiberglass cover, a 1.25in bronze gate valve, a cast iron ball check valve, brass disconnect, and stainless steel extension handle, lifting chain, and discharge piping. The pump includes both upper and lower guardrail support, and the guardrails are 1in diameter T304 stainless steel.
