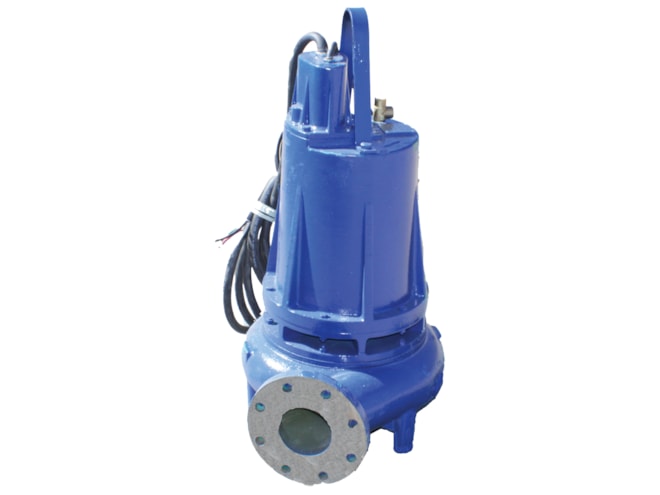

Power-Flo Technologies PFC4NC Solids Handling Sewage Pump

1,750 RPM, 60Hz.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $7,847.88
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • 4.5 to 15 HP
  • 3 phase motor (1 phase option for 4.5 HP)
  • 4in, 125lb, ANSI flange, horizontal discharge
  • 104°F liquid temperature
  • Cast iron, Class 30 motor housing, volute, impeller, and seal plate
  • 230 or 460V options
  • Seal:
    • Double mechanical
    • 1.25in
    • T21 oil-filled pressure-equalized reservoir
    • Carbon/ceramic/silicon inner seal
    • Carbide/silicon carbide/Viton outer seal

The Power-Flo Technologies PFC4NC Solids Handling Sewage Pump is submersible and designed for typical raw sewage applications. The pump is composed of a dynamically-balanced, 2-vane, ISO G6.3 certified, open type impeller with pump out vanes on the back side. It includes two oil-lubricated ball bearings: a single row upper bearing, and a double row lower bearing. The motor is composed of Class F insulation, is oil-filled, and available as a three phase, with a single phase, 230V option for 4.5 HP motors. The single phase motor uses a capacitor start/run, and requires a starter or a panel that includes capacitors and overload protection. The three phase motor is a 230/460V dual voltage, and requires overload protection to be included in the control panel.

Manufacturer Stock

Part Number Price Available
PFC4NC15034
Show Configuration
$10,142.13 4 in stock
PFC4NC7534
Show Configuration
$8,305.92 4 in stock
PFC4NC7544
Show Configuration
$8,305.92 4 in stock
PFC4NC11334
Show Configuration
$9,267.02 3 in stock
PFC4NC4544
Show Configuration
$8,176.90 2 in stock
PFC4NC11344
Show Configuration
$9,267.02 1 in stock
PFC4NC15044
Show Configuration
$10,142.13 1 in stock
PFC4NC4534
Show Configuration
$8,176.90 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
