Overview

Features

  • -4 to 185°F operating temperature
  • CR2032/CR2050 replaceable battery
  • 1/4in NPT fitting
  • 17-4PH and polycarbonate enclosure
  • ±0.25% pressure accuracy
  • Bluetooth 4.2

Description

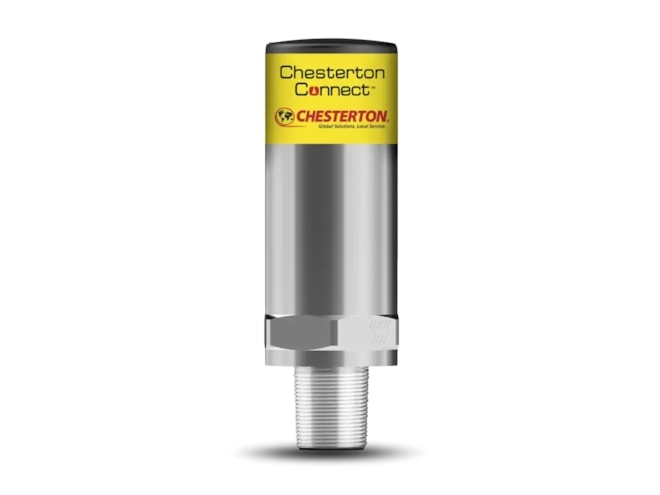

The Chesterton Connect Wireless Gauge increases pump uptime by remotely monitor pressure and temperature in localized areas. Utilizing the Chesterton Connect Gateway, the Gauge displays the measured parameters in the Chesterton Connect Cloud facilitating historical data trends and 24/7 notifications when user-defined thresholds are exceeded. Combined with the Cloud, the Gauge helps provide insights to improve maintenance, drive corrective actions, and optimize equipment performance.

  • The Chesterton Connect Wireless Gauge 1K PSI (70 Bar) wireless pressure transducer is suitable for pump suction and discharge applications, where both process pressure and process temperature is measured at 5 minute intervals. This sensor can also be used to measure plant air accurately down to around 20 PSI, after which it will still measure but with less accuracy.
  • The Chesterton Connect Wireless Gauge 10K PSI (700 Bar) wireless pressure transducer is suitable for high pressure applications, such as hydraulics or very high pressure pumping applications such as reciprocating pumps, or high head water distribution systems.  Both process temperature and temperature is measured at 5 minute intervals.
