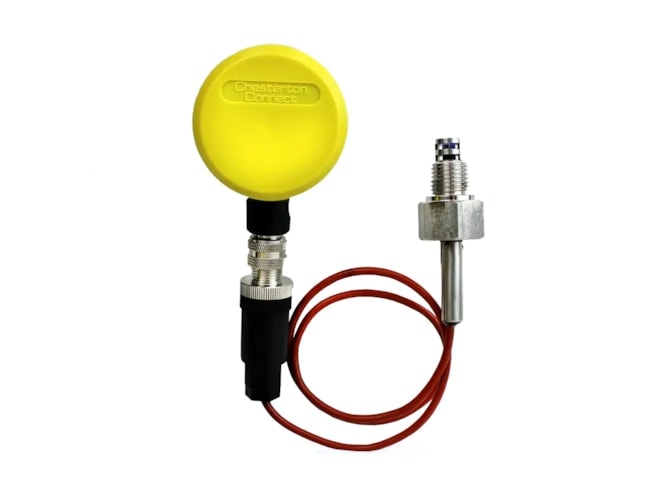

Chesterton Connect Humidity Link
Real-time monitoring of humidity levels in hydraulic oils, lubricating oils, and compressed air systems.

Overview
Features
- -40 to 248°F operating temperature
- 0 to 100% RH humidity range
- NdFeB, Grade N42, 8.68 lb pull force magnet
- CR2477X-HE lithium manganese dioxide non-rechargeable battery
- Magnetic mount or optional cradle
- 2+ years lifetime at ambient temperature
- Optional DC power accessory cable assembly
- Bluetooth Low Energy 5.0
- IP66, FCC, IC, CE, RoHS
Description
The Chesterton Connect Humidity Link offers real-time monitoring of humidity levels in hydraulic oils, lubricating oils, and compressed air systems. By detecting moisture before it leads to corrosion, oxidation, or reduced lubrication efficiency, this sensor helps prevent unplanned downtime and costly equipment failures. The sensor is battery-powered and features 1/2" FNPT fittings for easy in-line installation. Utilizing the Chesterton Connect Gateway, the Humidity Link displays the measured parameters in the Chesterton Connect Cloud, facilitating historical data trends and 24/7 notifications when user-defined thresholds are exceeded.
Applications
- Gearboxes and motors
- Industrial equipment
- Seal barrier fluid systems
