Chesterton Connect Pump Configurations
Pump configuration to identify over 15 or 20 pump anomalies depending on version.
Overview
Features
- Intrinsically safe option available
- 68 bar g (1,000 psig) or -1-68 bar g (-14.7-1000 psig) Pressor sensor limit depending on model
- -4 to 185°F body temperature
- -4 to 257°F sensor temperature
- 3-axis accelerometer vibration sensor
- Replaceable 3.6V lithium thionyl chloride battery
- 1/4in NPT connection
- -4 to 185°F operating temperature
- CR2032/CR2050 replaceable battery
- 1/4in NPT fitting
- 17-4PH and polycarbonate enclosure
- ±0.25% pressure accuracy
- -4 to 185°F operating temperature
- 2 year non replaceable battery (CR2477X)
- Magnetic or bracket mount
- Liquid contact moisture detection
- ±5°F temperature output accuracy
- Bluetooth 4.2
Description

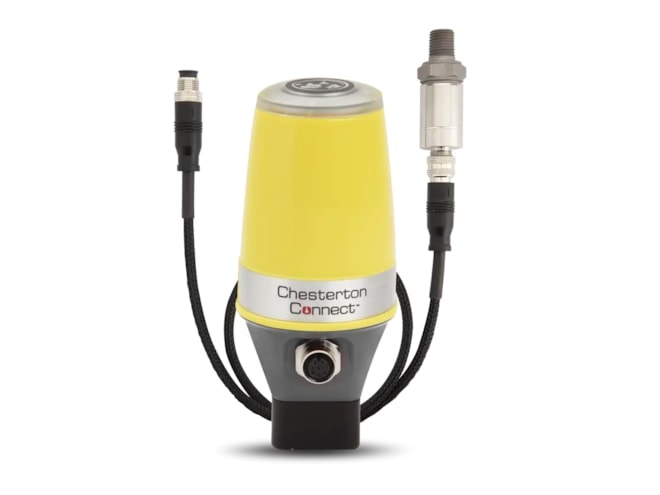

The Chesterton Connect Pump Basic Configuration monitors the pressure, temperature, and vibration of the seal or stuffing box, while simultaneously monitoring the pump process using suction and discharge pressure measurements.
The Chesterton Connect Enhanced Configuration monitors everything the basic configuration does, but adds (2) Nano vibration monitors for the motor and pump skid, or pump room. Using the Nano, this configuration automatically provides run-time monitoring used to calculate MTBF of the installation, it determines on/off status, counts the number of times the pump is turned on or off, and determines if the pump is running or not.
Chesterton Basic includes:
- 1 Connect
- 2 Gauge
Chesterton Enhanced includes:
- 1 Connect V1
- 2 Gauge
- 1 Nano (two pack)
