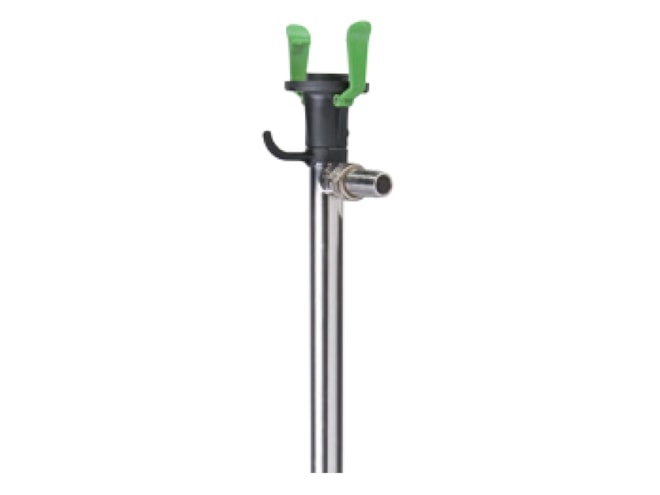

Flux Pumps COMBIFLUX FP314 Series Sealless Pump

Sealless pump with an immersion length of up to 47in and maximum flow rate of 15.5GPM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $399.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Maximum flow rate: 15.5GPM
  • Viscosity: 1 to 250cPs
  • Maximum temperature: 140°F (60°C)
  • Materials: stainless steel, polypropylene, and polyvinylidene fluoride (PVDF)
  • Sealless design
  • Quick action coupling for motor and pump assembly
  • Immersion length options: 27mm, 39mm, and 47mm

The Flux Pumps COMBIFLUX FP314 is a sealless pump suitable for pumping small quantities from containers such as small pails up to 55 gallon drums. Examples of fluids suitable for this pump include acids, alkalis, cleaning solutions, and aggressive chemicals among others. The cooling concept of the motor (sold separately) with double-walled housing ensures air circulation and protects against the penetration of aggressive vapors. The small diameter of the outer tube allows for use with containers with narrow openings. This pump is designed on a modular basis and can either be operated with the commutator motor FEM 3070 or the battery motor FBM-B 3100.
