Flux Pumps F426 Series Mixing Pump

Comes with 3 operating modes for the mixing and pumping of liquids.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,183.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • Maximum flow rate: 63 GPM
  • Maximum delivery head: 42ft
  • Maximum temperature: 212°F
  • Viscosity: <1 to 1200 cPs
  • 39in (1000mm) immersion length
  • Mechanically sealed
  • Materials: Polypropylene and stainless steel options
  • The stainless steel option can be used in hazardous areas

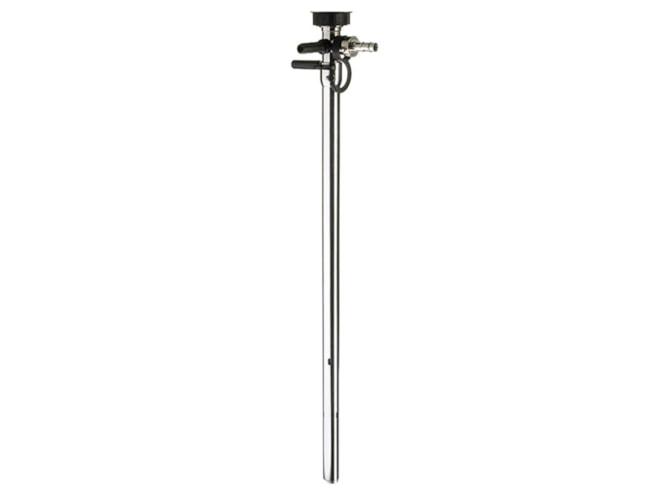

The Flux Pumps F426 series are mixing pumps ideal for mixing and/or pumping fluids that have a tendency to settle out or separate over time. The F426 can be temporarily operated as a pure mixing pump in the event the outlet is closed, through an action such as a hand nozzle for example. The pump can be adjusted to "mixing" or "pumping" abilities by turning the adjusting lever. It can be dismantled for rapid cleaning.

The mixing openings of this pump series allow for backflow of medium for mixing back into the container. It comes with a mechanical seal and the polypropylene version has an inner tube with a metal core. There is also a stainless steel option, which can be operated in hazardous area. The F426 series has a maximum flow rate of 63 GPM and maximum delivery head of 42ft.
