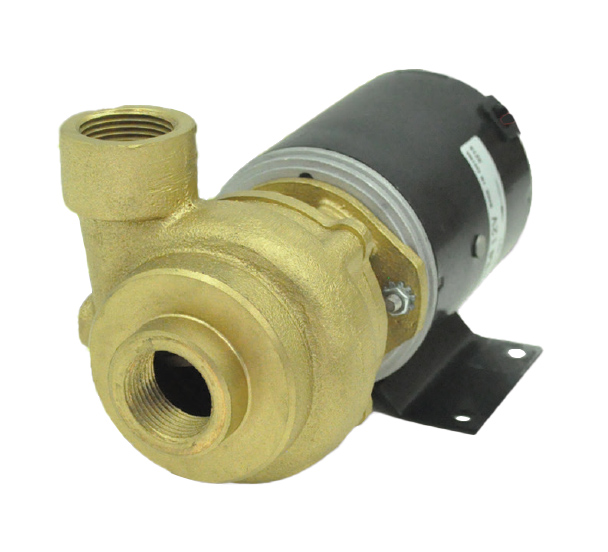

AMT Bronze Series Straight Centrifugal Pump

Naval bronze centrifugal pump with a maximum flow of 17 GPM and maximum head of 12ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $290.36
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
AMT Bronze Series Straight Centrifugal Pump (for model 3670-97) AMT Bronze Series Straight Centrifugal Pump (for model 4861-97)
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Bronze material
  • Buna-N mechanical seal and O-ring
  • 50 PSI maximum working pressure
  • 180°F maximum operating temperature
  • 17 GPM maximum flow
  • 12ft maximum head
  • Self-cleaning, semi-open impeller
  • Enclosed motor
  • Voltage options 12V DC or 115VAC motor

The AMT bronze series of straight centrifugal pumps are designed for naval applications and come in two voltage options: 115VAC and 12V DC. The 115VAC option is recommended for low pressure salt water wash down and recirculating applications, whereas the 12V DC option is suitable for general dewatering, salt water applications in live well tanks, circulation, and chemical transfer. The pumps contains a seal wash, front drain plug, and pull-from-rear design. The pump is fitted with a 1/8 HP, 3700 RPM motor, with ball bearings and a stainless steel shaft. Pumps are not self-priming and require flooded suction.

ISNY Abrasive Cyclone Separator
ISNY Abrasive Cyclone Separator

Uses rotational effects and gravity rather than filters to remove particulates from fluids.

$500.00

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
3670-97
Show Configuration
$388.28 1 in stock
4861-97
Show Configuration
$290.36 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
