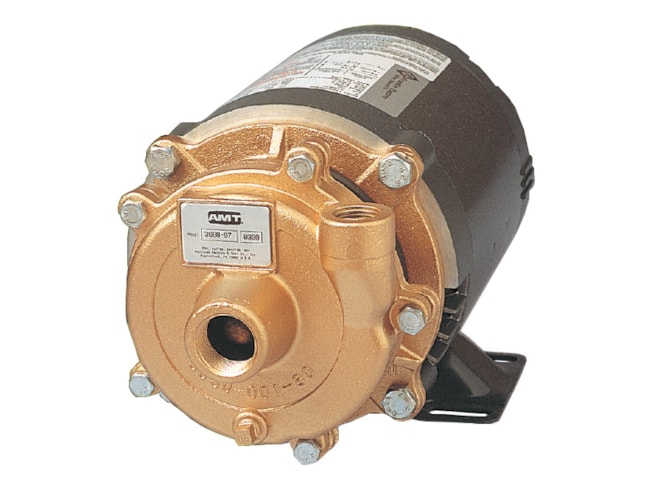

AMT 300 Series Small Straight Centrifugal Pump

Available in bronze, stainless steel, or cast iron with a maximum flow of 90 GPM and a maximum head of 65ft at 28 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $402.56
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Bronze, stainless steel, or cast iron construction
  • Buna-N or Viton mechanical seal and O-ring
  • Stainless steel motor shaft and hardware
  • NEMA 56J TEFC single or three phase motors
  • NEMA base mounted motor
  • Self-cleaning impeller
  • Discharge rotates in 90° increments
  • 200°F (Viton) or 180°F (Buna-N) maximum temperature, dependent on seal
  • 75 PSI maximum working pressure
  • Front drain plug

The AMT 300 Series is a series of small, straight centrifugal pumps available in bronze, stainless steel, or cast iron construction. It is designed for continuous-duty low pressure OWM, industrial/commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. They are available with either buna-N or Viton mechanical seals and O-rings, depending on construction material selection. The pull-from-rear design allows for service without disrupting any piping. The self-cleaning impeller prevents clogging and handles solids of 1/8in diameter. Additionally, pumps are close coupled to TEFC motors. They are not self-priming and require flooded suction.

ISNY Abrasive Cyclone Separator
ISNY Abrasive Cyclone Separator

Uses rotational effects and gravity rather than filters to remove particulates from fluids.

$500.00

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
368A-95
Show Configuration
$402.56 1 in stock
368A-98
Show Configuration
$573.24 1 in stock
368B-95
Show Configuration
$411.40 1 in stock
368B-98
Show Configuration
$581.40 1 in stock
368C-95
Show Configuration
$430.44 1 in stock
368C-98
Show Configuration
$581.40 1 in stock
369B-95
Show Configuration
$527.00 1 in stock
369B-98
Show Configuration
$745.96 1 in stock
369C-95
Show Configuration
$463.76 1 in stock
369D-97
Show Configuration
$790.84 1 in stock
369D-98
Show Configuration
$794.24 1 in stock
369E-95
Show Configuration
$569.16 1 in stock
369F-95
Show Configuration
$496.40 1 in stock
369F-98
Show Configuration
$685.44 1 in stock
370A-95
Show Configuration
$431.12 1 in stock
370A-98
Show Configuration
$617.44 1 in stock
370B-95
Show Configuration
$415.48 1 in stock
370B-97
Show Configuration
$644.64 1 in stock
370B-98
Show Configuration
$614.04 1 in stock
370D-95
Show Configuration
$470.56 1 in stock
370D-98
Show Configuration
$652.80 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1 to 2 weeks". Click here to select options
