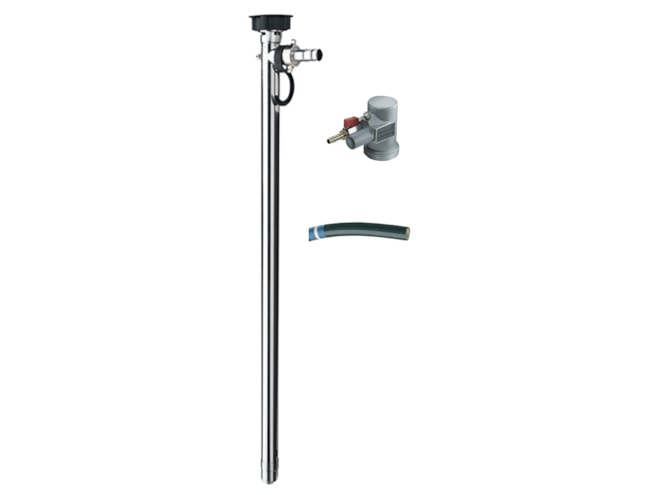

Flux Pumps F424PVDF Polyvinylidene Fluoride 39-inch Pump Tube with F416-2 Electric Motor and Hose

A sealless, polyvinylidene fluoride 39-inch immersion depth container pump with a progressive cavity pump motor and 6ft hose.

$2,667.00
Part Number
  • 24-PUWO0132
Highlights...

Features

  • F424PVDF Pump:
    • Spiral shaped guide bearing with large guide length
    • Viscosity: <1 to 1200cPs
    • Maximum delivery head: 98ft
    • Maximum flow rate: 63 GPM
    • Maximum temperature: 212°F (100°C)
    • Material: Polyvinylidene fluoride pump
    • Low-vibration
    • No seal in liquid zone
  • F416-2 Ex Container Pump Air Motor:
    • 470 watt power at 86psi operating pressure
    • 86psi max operating pressure
    • 17 CFM max air consumption
    • Adjustable tip valve and ball valve included
    • ATEX Ex II G IIC T6
  • 6ft food and chemistry hose

The Flux Pumps F424 is a series of sealless pumps ideal for transferring various low-viscosity and aggressive media. It is suitable for free-flowing liquids that are clean and non-abrasive, and best paired for use with drums, totes, IBCs, etc. The sealless pump design means there is no seal wear. The spiral shaped guide bearing in the inner tube helps prevent a build-up of media in the pump and can aid in increasing the pump's service life. The F424 series can be temporarily operated against a closed valve, up to the indicated maximum operating temperature.

The Flux Pumps F416-2 is an Ex container pump air motor. It is lightweight and user friendly, while capable of operating at varying speeds by adjustment of the input air operating pressure and volume. This is done by the use of the included ball valve. The F416-2 model specifically comes without trigger and with the ball valve. The F416-2 contains external ventilation and meets the standards for ATEX Ex II G IIC T6.
