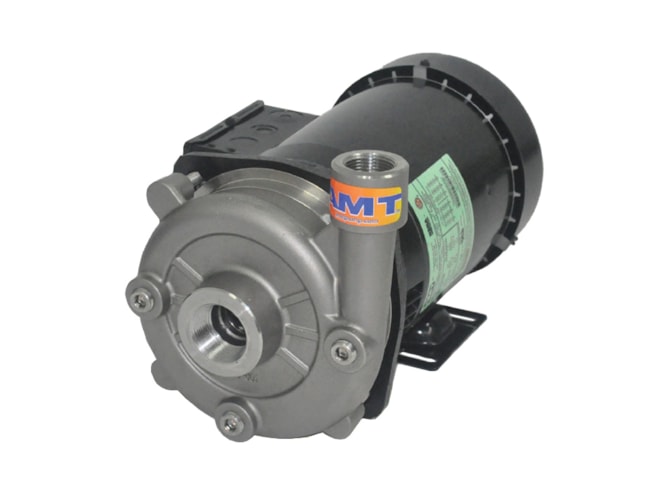

AMT 502/503 Series Straight Centrifugal Pump

Stainless steel or cast iron constructed straight centrifugal pumps with a maximum flow of 156 GPM and 2-piece impeller.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:30 am to 5:00 pm .
Starting Price: $571.20
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Stainless steel or cast iron construction
  • Viton silicon carbide mechanical seal and O-ring
  • 2-piece impeller
  • Discharge port rotates in 90° increments
  • Port options
    • 1 1/4 x 1in
    • 1 1/2 x 1 1/4in
  • 156 GPM maximum flow
  • 127ft maximum head at 55 PSI

The AMT 5000 Series of pumps are straight centrifugal pumps designed for continuous-duty OEM, industrial/commercial and processing applications including dirty water circulation. The pumps can handle liquids containing particles and solids up to 1/8in in diameter for chemical processing and liquid transfer. They are available in either stainless steel or cast iron construction with a stainless steel impeller available for both. The pull-from-rear design allows for servicing without disturbing piping. Pumps are close-coupled to TEFC motors. These pumps are not self priming and require a flooded suction.

ISNY Abrasive Cyclone Separator
ISNY Abrasive Cyclone Separator

Uses rotational effects and gravity rather than filters to remove particulates from fluids.

$500.00

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
5022-95
Show Configuration
$571.20 1 in stock
5022-98
Show Configuration
$894.20 1 in stock
5023-95
Show Configuration
$603.16 1 in stock
5023-98
Show Configuration
$928.20 1 in stock
5031-95
Show Configuration
$790.84 1 in stock
5031-98
Show Configuration
$1,151.92 1 in stock
5032-95
Show Configuration
$705.16 1 in stock
5032-98
Show Configuration
$1,066.24 1 in stock
5033-95
Show Configuration
$705.16 1 in stock
5033-98
Show Configuration
$1,066.24 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
