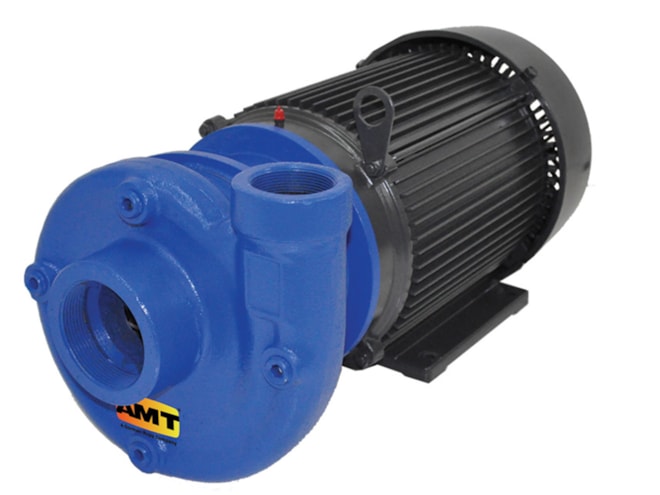

AMT Heavy Duty Series Centrifugal Pump

Heavy duty centrifugal pumps with high head and high flow options available; maximum flow rate of up to 500 GPM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $820.76
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...

Features

  • Options available for high head or high flow
  • Stainless steel or cast iron construction
  • Buna-N or Viton options for mechanical seals and O-rings
  • Front drain plugs located 90° apart
  • Maximum head: 194ft at 84 PSI
  • Maximum flow: 500 GPM
  • 2 to 15 HP NEMA motors
    • Available in 1 or 3 phase
  • Solids handling and dirty water design

The AMT Heavy Duty series of solids handling centrifugal pumps are suited for uses such as: liquid and chemical transfer, recirculation, booster service, dirty water, and other industrial applications. Available in stainless steel or cast iron construction options. The stainless steel options are designed for applications where rust and/or corrosion can develop in systems. There are also options available for high head or high flow pumps.

These pumps are designed to handle liquids with solids content or dissolved solids and debris. The semi-open impeller features a self-cleaning ability, which makes the unit ideal for applications involving up to 1/4in diameter solids and muddy or dirty liquids. The discharge position can be adjusted in 90° increments with vent and drain plugs for all positions. These pumps are not self-priming and require flooded suction.

AMT Electric Pump Mounting Base
AMT Electric Pump Mounting Base

Rigid steel base providing stability and support to mounted AMT framed electric pumps.

Mfg. has some models in stock
Starting at $336.00
ISNY Abrasive Cyclone Separator
ISNY Abrasive Cyclone Separator

Uses rotational effects and gravity rather than filters to remove particulates from fluids.

$500.00

This product can be used in the following applications:

Manufacturer Stock

Components in stock, please allow 2-3 business days for processing.

Part Number Price Available
3150-95
Show Configuration
$1,039.72 1 in stock
3151-95
Show Configuration
$1,162.80 1 in stock
3151-98
Show Configuration
$1,645.60 1 in stock
3152-95
Show Configuration
$1,207.00 1 in stock
3152-98
Show Configuration
$1,646.96 1 in stock
3156-95
Show Configuration
$820.76 1 in stock
3156-98
Show Configuration
$1,164.84 1 in stock
3157-95
Show Configuration
$820.76 1 in stock
315A-98
Show Configuration
$1,428.68 1 in stock
315B-95
Show Configuration
$916.64 1 in stock
315B-98
Show Configuration
$1,368.16 1 in stock
4240-95
Show Configuration
$1,570.80 1 in stock
4240-98
Show Configuration
$1,847.56 1 in stock
4250-95
Show Configuration
$1,757.12 1 in stock
4250-98
Show Configuration
$2,256.24 1 in stock
4251-95
Show Configuration
$1,942.76 1 in stock
4251-98
Show Configuration
$2,499.00 1 in stock
4260-95
Show Configuration
$1,597.32 1 in stock
4260-98
Show Configuration
$1,976.76 1 in stock
4261-95
Show Configuration
$1,725.16 1 in stock
4261-98
Show Configuration
$2,182.12 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2 to 3 weeks". Click here to select options
